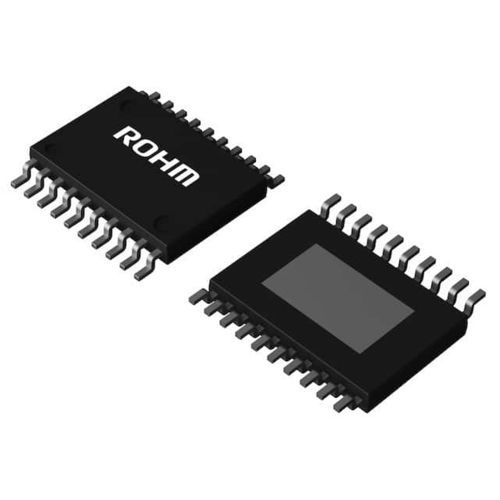

BD63610AEFV is a bipolar low-consumption driver that driven by PWM current. Rated power supply voltage of the device is 36V, and rated output current is 0.8A. CLK-IN driving mode is adopted for input interface, and excitation mode is corresponding to FULL STEP mode, HALF STEP mode. In addition, the power supply may be driven by one single system, which simplifies the design.
Rated output current (DC) 0.8A
Low ON resistance DMOS output
CLK-IN drive mode
PWM constant current (other oscillation) Built-in spike noise cancel function (external noise filter is unnecessary)
Full, half step functionality
Freely timing excitation mode switch
Normal rotation & reverse rotation switching function
Power save function Built-in logic input pull-down resistor
Power-on reset function Thermal shutdown circuit (TSD)
Over-current protection circuit (OCP)
Under voltage lock out circuit (UVLO)
Over voltage lock out circuit (OVLO)
Ghost Supply Prevention
(protects against malfunction when power supply is disconnected)
Microminiature, ultra-thin and high heat-radiation(exposed metal type) package
