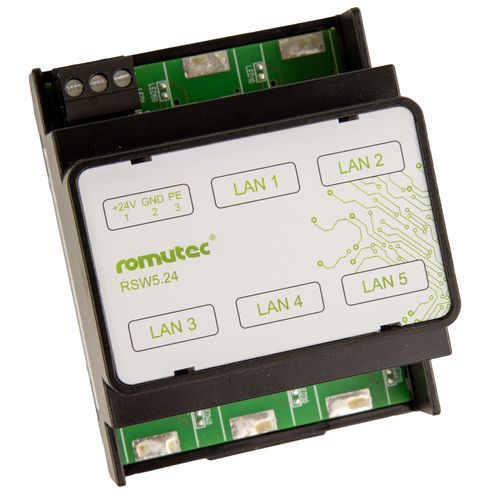

Unmanaged switch RSW5.245 portsfast ethernetDIN rail
Add to favorites
Compare this product
Characteristics
- Type
- unmanaged
- Number of ports
- 5 ports
- Network
- fast ethernet
- Mounting
- DIN rail
Description
Product information
The RSW5.24 is a 5-port unmanaged 10/100Base-TX Fast Ethernet switch for DIN-rail mounting. It fully supports IEEE 802.3 and IEEE 802.3u standards. The switch includes an internal 1 Mbit RAM for packet buffering and a Look-Up-Table with a capacity of 1000 entries. Auto-Negotiation automatically detects 10Base-T or 100Base-TX link speed. Full-duplex flow control in accordance with IEEE 802.3x is supported.
Downloads (available file types)
Technical specifications
The RSW5.24 is a 5-port unmanaged 10/100Base-TX Fast Ethernet switch for DIN-rail mounting. It fully supports IEEE 802.3 and IEEE 802.3u standards. The switch includes an internal 1 Mbit RAM for packet buffering and a Look-Up-Table with a capacity of 1000 entries. Auto-Negotiation automatically detects 10Base-T or 100Base-TX link speed. Full-duplex flow control in accordance with IEEE 802.3x is supported.
Downloads (available file types)
- Data Sheet (PDF)
- Connection Diagram (PDF)
- Technical Description (TXT)
- Technical Data (TXT)
Technical specifications
- Brand: romutec Steuer- und Regelsysteme GmbH
- Model: RSW5.24
- Product number / SKU: 00003155
- Product ID: f8dca2a498cf11ecb824000c29491ae5
- Type: 5 Port unmanaged Fast-Ethernet Switch
- Ports: 5 x 10/100Base-TX (Auto-Negotiation supported)
- Mounting: DIN-rail
- Standards supported: IEEE 802.3, IEEE 802.3u
- Buffer memory: 1 Mbit internal RAM for packet buffering
- Look-Up-Table capacity: 1000 entries
- Flow control: full duplex flow control per IEEE 802.3x
- Weight: 0.132 kg
