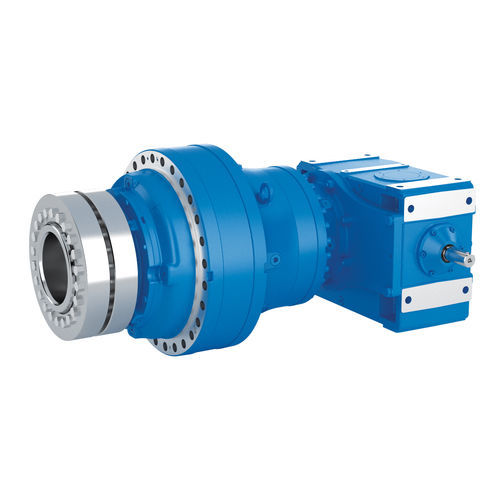

Modular gearbox EP KING
planetaryspiral bevelcoaxial

modular gearbox
modular gearbox
modular gearbox
modular gearbox
modular gearbox
modular gearbox
Add to favorites
Compare this product


Characteristics

Type
planetary, spiral bevel
Shaft orientation
coaxial, right angle
Torque
1 - 2 kNm, 2 - 5 kNm
Number of stages
multi-stage
Performance
high-efficiency, high-precision, high-torque, low-backlash
Applications
for industrial applications, for construction equipment, for the chemical industry, for heavy-duty applications, for mining equipment, for marine applications, for food industry machinery
Other characteristics
compact, modular, custom, combined

Description

Modular gearboxes for customer tailored solutions where are required the highest torques, peak bearing capacity, high transmission ratio, high efficiency and lifetime. A cost-effective and reliable solution for “heavy duty” environment. FEATURES 2, 3, 4 or 5 and 6 reduction stages for both coaxial and right angle units Modular design, with multi-optional executions Suitable to be equipped with NEMA, hydraulic & IEC motors External gear pair made of casehardened and hardened steel; internal gear made from nitride steel Cylindrical spur gear with ground profile and flank modification GLEASON spiral bevel gear pairs with ground profile Very compact size and reduced mass of gearbox Wide range of accessories and non-standard designs Lower backlash, enhanced stiffness and heavy duty bearing Improved lubrication system Wide range of hydraulic brakes BENEFITS Easy and functional flange, foot, or shaft-mounting design High torque transmitted Extended range of transmission ratios and output speeds available

VIDEO
