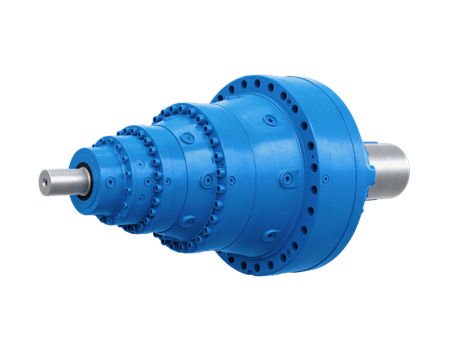

Planetary gear reducer EP

bevelcoaxial> 10 kNm

The planetary gearboxes are designed with the help of the most advanced technologies, exploiting the experience gained in all the most severe applications. A complete range of gearboxes, suitable for every type of product in the industrial field. Planetary gearboxes are used in almost all fields of use that require high torques, peak bearing capacity, high transmission ratio, high efficiency and lifetime, small dimensions and weights. FEATURES 1, 2, 3, 4 reduction stages for both coaxial and right angle units, 5 and 6 stages under request Modular design, with multi-optional executions Suitable to be equipped with NEMA, hydraulic & IEC motors External gear pair made of casehardened and hardened steel; internal gear made from nitride steel Cylindrical spur gear with ground profile and flank modification GLEASON spiral bevel gear pairs with ground profile Very compact size and reduced mass of gearbox Wide range of accessories and non-standard designs Lower backlash, enhanced stiffness and heavy duty bearing Improved lubrication system Wide range of hydraulic brakes BENEFITS Easy and functional flange, foot, or shaft-mounting design High torque transmitted Extended range of transmission ratios and output speeds available
