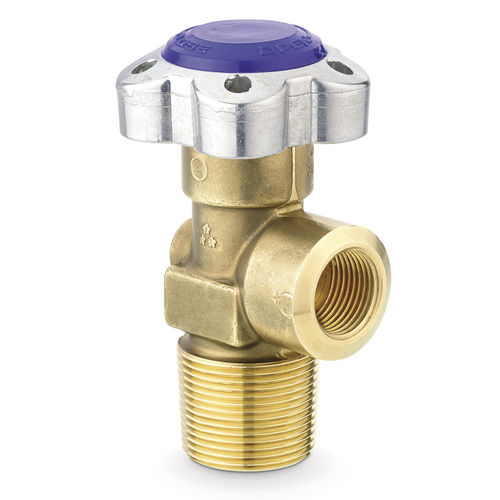

Valve with handwheel C 40 seriesfor acetylenemale-femalebrass
Add to favorites
Compare this product
Characteristics
- Operation
- with handwheel
- Media
- for acetylene
- Body
- male-female, brass
- Applications
- industrial
- Pressure
30 bar
(435.1 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 65 °C
(149 °F)
Description
Application:
Acetylene gas industrial applications
Key Advantages:
Permanent gas tight seal
Robust design for trouble-free life under all service conditions
Low torque operation
π marking according to TPED
Tested according to EN 849 and CGA V9 standards
Specifications:
Max. Working Pressure: 30 bar / 400 psi
Temperature Range: -40° C/ -40° F up to 65° C/ 149° F
Seat orifice size: 4 mm
Catalogs
Valves for industrial gases
80 Pages
