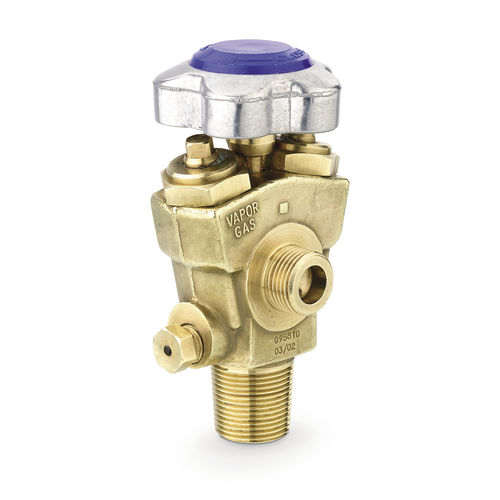

Y valve C560with handwheelfor inert gasesmale-male
Add to favorites
Compare this product
Characteristics
- Operation
- with handwheel
- Media
- for inert gases
- Body
- male-male, Y, brass
- Applications
- cylinder
- Fluid specification
- for flammable fluids
- Other characteristics
- ISO, high-pressure
- Pressure
200 bar
(2,900.8 psi)- Temperature
Min.: -20 °C
(-4 °F)Max.: 65 °C
(149 °F)
Description
Key advantages
- High pressure brass cylinder valve Y type for Inert, Inert mixtures and flammable gas service
- Permanent gas tight seal
- Specific filling adaptor required
- Residual pressure valve offline execution
- π marking according TPED directive
- Tested according EN ISO 10297 and ISO15996 standards
Catalogs
Valves for industrial gases
80 Pages
