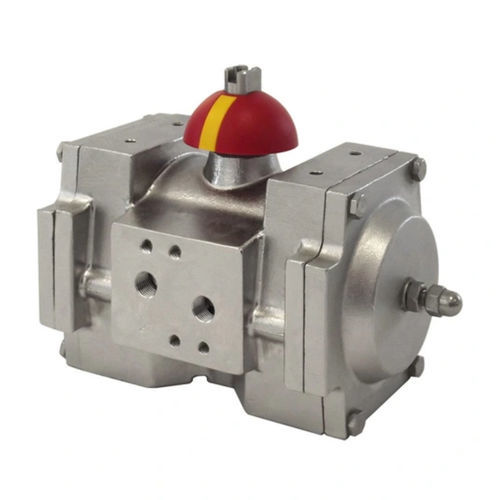

Pneumatic valve actuator GTSrotaryrack-and-pinionpiston
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Technology
- rack-and-pinion, piston
- Configuration
- double-acting
- Other characteristics
- ATEX, stainless steel, NAMUR, spring-return
- Torque
Max.: 1,190 Nm
(877.7 ft.lb)Min.: 2 Nm
(1.48 ft.lb)
Description
GTS Range single- and double-acting pneumatic piston actuators
Design
Single- and double-acting pneumatic piston actuators (rack and pinion)
Action
Standard 90°
Stroke adjustment
-5° to +5° from 90° position
Double end stop options
Torques
2.4 to 1,190 Nm (10,170 lbf.in)
Air pressure
2 to 10 bar
Supply
Filtered air PNEUROP/ISO class 4, other fluids on request
Materials
Body and end caps in electro-polished stainless steel 316L
Pistons in die cast aluminium – optional in stainless steel 316L
Pinion in stainless steel 316L
Approvals and Industry Standards
Certified to ATEX 2014/34/EU
