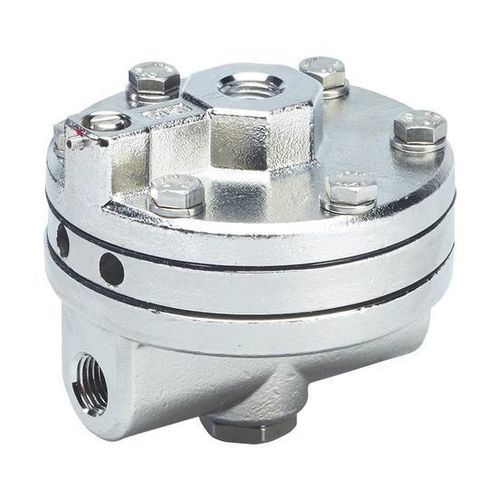

Volume pneumatic volume booster YT-305

pressure

Product overview
Volume booster relay YT-305 is designed for use with pneumatic control valves and positioners. It receives the positioner output signal and supplies boosted air pressure to the actuator to reduce response and adjustment time. The product is part of the YTC Valve Positioner Accessories range.

Features

• Delivers constant air pressure at a 1:1 supply ratio
• By-passing control improves control valve safety
• High sensitivity: responds to slight input-signal changes for accurate actuator pressure output
• Built-in 100-mesh screen filters dust from the air supply

Applications
Used with pneumatic control valves and positioners to improve actuator response time and the accuracy of valve positioning in industrial pneumatic control systems.

Technical specifications

• Type: Volume booster relay
• Model: YT-305
• Function: Supplies boosted air pressure to actuator from positioner output
• Supply ratio: 1:1 constant air pressure supply
• Safety: By-passing control enhances valve safety
• Control sensitivity: Responds to slight changes in input signal for accurate actuator pressure output
• Filtration: Built-in 100 mesh screen
• Compatibility: Designed for use with YTC valve positioner accessories and pneumatic actuators
