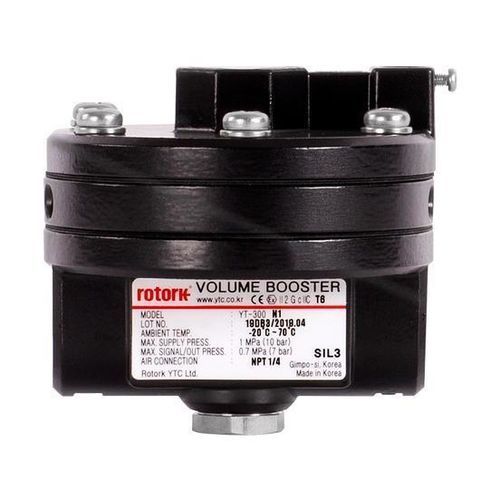

Volume pneumatic volume booster YT-300

pressure

Product overview
Volume booster relay YT-300 is designed for pneumatic control valves. It amplifies the positioner output by supplying actuator air with a constant supply ratio of 1:1, reducing response and adjustment time while improving control stability.

Key features

• Delivers constant output pressure at a 1:1 supply ratio
• Bypass control function enhances valve safety during overload or failure conditions
• High sensitivity to small input changes for accurate actuator positioning
• Built-in 100 mesh screen filters dust and contaminants from supply air

Applications
Intended for integration with pneumatic positioners and control valves in industrial process control systems to improve actuator response and control precision.

Technical specifications

• Function: Volume booster relay for pneumatic control valves
• Supply ratio: 1:1 (constant output pressure)
• Bypass control: Provides enhanced safety via bypassing control
• Sensitivity: Responds to slight changes in input signal for improved output accuracy
• Filtration: Built-in 100 mesh screen to filter dust from air
• Typical use: Works with positioner output to supply actuator air and reduce response/adjusting time
