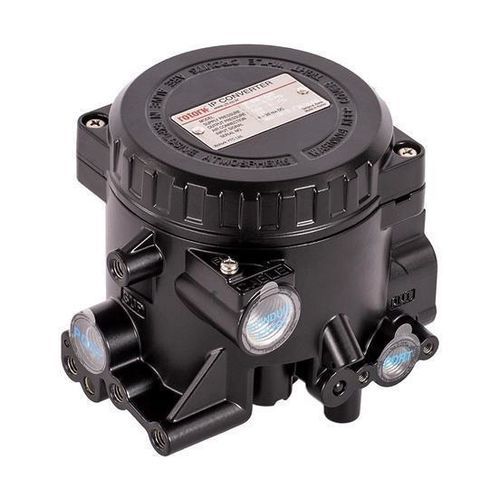

Electro-pneumatic transducer YT-930

Description
The YT-930 I/P converter converts a 4–20 mA control signal into a proportional pneumatic output pressure to supply valve positioners and pneumatic actuators. It is designed for tubeless connection with YT-200 air regulators and offers options for explosion-proof installations.

Range
YTC - Valve Positioner Accessories

Features

• High accuracy and sensitivity
• Simple zero and span adjustment
• Optional feedback signal
• Analog PID control
• Tubeless connection compatible with YT-200 Air Regulator
• Explosion-proof variants available
• No effect from mounting orientation

Documents (available)

• User manual (YT-930 manual)
• 2D drawing for valve accessories
• Wiring diagrams (standard, barrier, PTM variants)
• Certificates (ATEX, IECEx, ILAC, KOLAS, etc.)

Technical specifications

• Brand: YTC
• Model: YT-930
• Function: I/P (current-to-pneumatic) converter providing air pressure output proportional to the control input
• Input signal: 4–20 mA
• Output: Pneumatic pressure to drive valve positioner / actuator equipment
• Connection: Tubeless connection compatible with YT-200 Air Regulator
• Control options: Analog PID control; optional feedback signal
• Safety / approvals: Explosion-proof variants and multiple certification documents available
• Adjustments: Zero and span adjustable
• Installation: Orientation-insensitive
