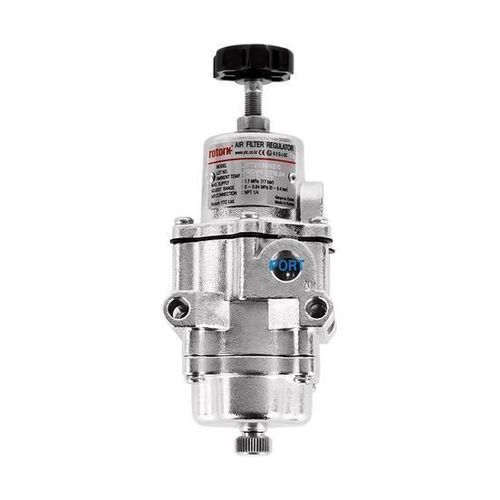

Compressed air filter-regulator YT-205

pressurefor valvesadjustable

Product overview
Air filter regulator suitably reduces plant main air supply pressure and supplies regulated air to valve positioner(s) or control device(s).

Features

• Maintain stable outlet pressure
• Light weight and compact size
• 5 micron filter
• Relief function - discharges pressure if outlet pressure is higher than set pressure

Available documents (file names)

• PUB126-097 - YT-200_205_220_225 - Manual - English (pdf)
• YT-205 Auto-Drain Valve accessories 2D Drawing_YT205-02rev5_1224 (pdf)
• YT-205 Standard Valve accessories 2D Drawing_YT205-01rev7_1224 (pdf)

Technical specifications

• Outlet pressure regulation: maintains stable outlet pressure (settable)
• Filter rating: 5 micron
• Relief function: discharge when outlet pressure exceeds set pressure
• Design: light weight and compact
• Intended use: regulate plant main air supply for valve positioners and control devices
