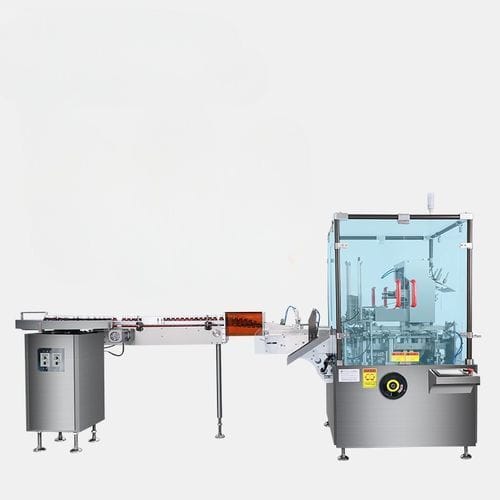

Horizontal cartoner RD-ZH-120L

for the pharmaceutical industrycompactautomatic

Overview
The small cartoner is an inline machine for automatic erection of pre-folded cartons, insertion of products and instructions (leaflets/manuals), printing of batch numbers and closing (ear folding and tongue insertion). It is configured for blister packs, bottles, sachets, tubes and similar small items and can be equipped with different feeders and an optional hot melt glue unit for sealing.

Process Steps

• Carton erection: mechanical arms or suction devices pick up a flat carton and form it to open position.
• Product feeding: products are transferred from the infeed conveyor and precisely positioned for insertion.
• Instruction insertion and folding: leaflets are folded (1–4 folds) by the leaflet feeder and inserted into the carton.
• Batch printing and closing: the machine prints batch/lot numbers, folds ears, inserts tongues and can apply hot melt glue if configured.
• Ejection and discharge: sealed cartons are discharged to conveyor for downstream labeling, case packing or shipping.

Specification
Production capacity up to 120 cartons/min. Suitable for blister plates, bottles, sachets and similar products. Typical lead time: 20 days (fast delivery).

Key Parameters (table)

• Production capacity: Max. 120 cartons/min
• Carton size range: L 65–150 mm × W 35–85 mm × H 12–45 mm
• Instruction (leaflet/manual) size range: L 78–250 mm × W 85–170 mm
• Instruction folding: 1–4 folds
• Instruction paper weight: 60–70 g/m²

Main Features

• Compact footprint: designed for limited floor space in small to medium production lines.
• Flexible feeding: supports multiple feeder types for blisters, bottles, sachets and leaflets.
• High throughput for size: up to 120 cartons/min suitable for low-to-medium volume production.
• Customisable sealing: optional hot melt glue unit for secure closure where required.

Main Parts

• Product infeed and conveyor
• Leaflet/manual feeder
• Carton erector and positioning unit
• Insertion/pushing mechanism for products and leaflets
• Batch number printer
• Carton closing unit (ear folding, tongue insertion, optional glue)
• Discharge conveyor

Technical specifications

• Production capacity: Max. 120 cartons/min
• Carton size range: L 65–150 mm × W 35–85 mm × H 12–45 mm
• Instruction (leaflet) size range: L 78–250 mm × W 85–170 mm
• Instruction folding: 1–4 folds
• Instruction paper weight: 60–70 g/m²
• Applicable products: blister plates, bottles, sachets, tubes and similar small items
• Optional: hot melt glue sealing configuration
• Typical lead time: 20 days (fast delivery)
