Horizontal cartoning machine RD-SPM-480

for the pharmaceutical industryfor maskshigh-speed

Product Overview

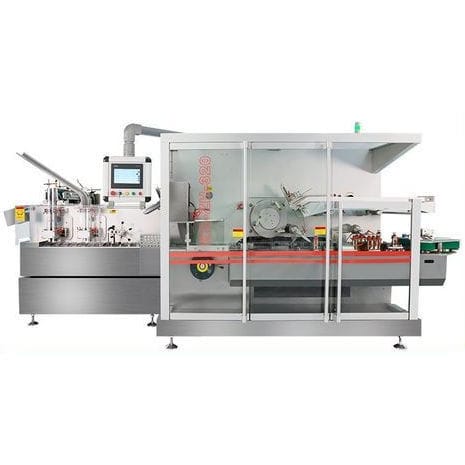

Full Servo Horizontal Cartoner is a next‑generation high‑speed cartoning machine designed to meet GMP production standards. It is engineered for continuous high‑speed horizontal cartoning of pharmaceutical inserts, blisters, bottles, sachets and similar items and can be integrated with upstream and downstream equipment for automated packaging lines.

Specification
Production capacity: Max. 320 cartons/min
Carton size range: L (65–150) × W (35–85) × H (12–45) mm
Insert (instruction) size range: L (78–250) × W (85–170) mm
Insert folding: 1–4 folds
Insert paper weight: 60–70 g/m²

Main Features

• High production speed up to 320 cartons/min for continuous lines
• Compatible with blister plates, bottles, sachets and similar items
• Short lead time option: approx. 20 days for fast delivery

Working principle
The machine sequence includes material feeding, product placement, carton opening and forming, sealing and discharge. Workstations are synchronized for seamless continuous operation at high speed.

Advantages

• Frame and contact parts in stainless steel or carbon steel with heat‑tempered welds to meet hygiene and durability requirements
• Rotating four‑equal‑divided double‑planetary external‑opening carton mechanism with two pre‑forming devices to ensure reliable carton forming and to prevent collisions with larger cartons
• Three‑stage in‑carton detection (material feeding → rail feeding → in‑carton detection) with automatic rejection, alarm and stop on fault

Main Parts

• Servo oscillation feeder
• Siemens PLC control
• Servo carton delivery
• Folded ears device
• Handle scale adjustment
• Tongue insertion unit
• Emergency stop
• Backer vacuum pump

Technical specifications

• Production capacity: Max. 320 cartons/min
• Carton size range: L 65–150 mm × W 35–85 mm × H 12–45 mm
• Insert size range: L 78–250 mm × W 85–170 mm
• Insert folding: 1–4 folds
• Insert paper weight: 60–70 g/m²
• Applicable products: tablets, capsules, alu‑PVC blisters, granular sachets, ointments, pouches, bottled products, facial cleansers, e‑cigarettes, face masks
• Construction: stainless steel or carbon steel with heat‑tempered weld positions
• Carton forming: double‑planetary external‑opening structure with two pre‑forming devices
• Detection and safety: in‑carton detection with auto‑rejection, alarm and stop; emergency stop included
• Integration: compatible with pillow packers, wrappers and blister machines for automated lines
