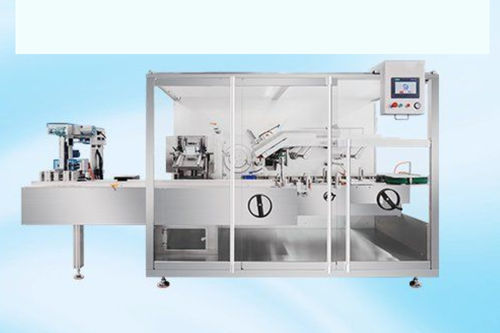

Horizontal cartoning machine RD-ZH-130W

for the cosmetics industryfor the food industryfor the pharmaceutical industry

Product overview
The RD-ZH-130W cartoning machine packs a range of products into cartons, including alu-pvc/alu-alu blister packs, pharmaceutical bottles, sachets and tubes. Suitable for pharmaceutical, nutraceutical, food, cosmetic and daily-chemical production lines. The machine adapts to different product formats by swapping feeders and adjusting carton size settings without structural changes.

Working principle
Products are fed manually or automatically. The machine runs a preset program to load a defined quantity into each carton. A conveyor with product detection verifies counts and triggers automatic rejection for mismatches. A leaflet folder (1–4 folds; optional GUK folder) folds and inserts instructions. A pusher transfers products and leaflets into an automatically opened carton, then flap folding and tucking are completed. Missing leaflet, unopened carton or missing product are detected and rejected automatically.

Specification (quick)
Up to 130 cartons/min
Applicable for blister plates, bottles, sachets, tubes
15 days fast delivery

Main features

• Multi-industry use: designed for pharmaceutical, food, cosmetic and daily-chemical lines.
• Automatic rejection system: detects and removes incorrect counts, missing products or unopened cartons.
• Integrated leaflet folder: supports 1–4 folds; optional GUK folder for special folding requirements.
• Modular feeders and servo control for format flexibility and precise placement.

How the blister cartoning packing line works
The RD-BCL-130W blister cartoning line can automatically form blisters, feed tablets or capsules into blisters, then collate and load blisters into cartons when the machines are integrated in a line configuration.

Main parts / process checks (summary)

• Blister feeder and servo feeders for accurate placement.
• Product and quantity checking stations to confirm counts before carton loading.
• Carton forming and flap-folding units with suction cups and guide rails.
• Leaflet folding and insertion module (1–4 folds supported).
• Rejection unit to remove empty cartons, missing leaflets or missing products.
• Optional printing/marking station for batch and expiry printing.

Technical specifications

• Production capacity: max. 130 cartons/min
• Carton size range: L 65–150 × W 35–85 × H 12–45 mm
• Leaflet size requirements: L 78–250 × W 85–170 mm
• Leaflet folding: 1–4 folds
• Instruction paper weight: 60–70 g/m²
• Applicable product types: blister plates, bottles, sachets, tubes
• Leaflet folder: integrated; GUK folder optional
• Key functions: product detection and quantity verification, automatic rejection, modular feeders for varied formats
