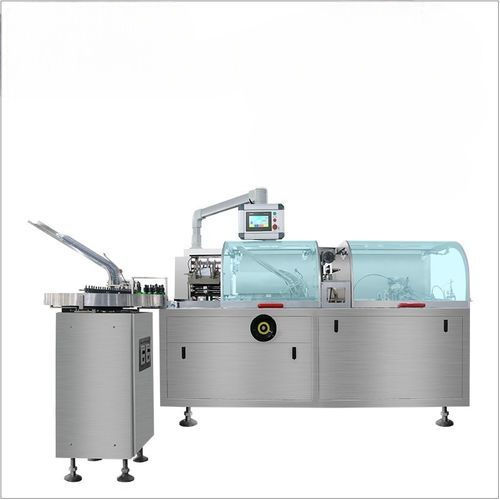

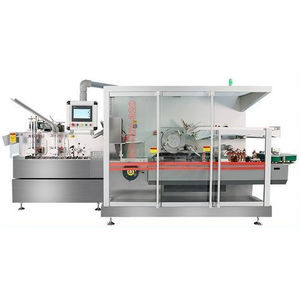

Lateral cartoning machine RD-ZH-120W

for the cosmetics industryfor the food industryfor the pharmaceutical industry

Overview
The Side-load Cartoner SL-120 is an automated packaging machine designed to form, fill and seal cartons for pharmaceuticals, food, cosmetics and consumer goods. It supports inline connection to blister packaging and pillow packing equipment for continuous production.

Function & Process
Flat cartons are fed into the machine, formed into a 3D carton, filled with product and leaflet (1–4 folds), and then closed by mechanical sealing, hot melt glue or tuck-flap closure. Integrated quality-control systems include material testing, lack-of-material detection, batch printing and automatic rejection to ensure correct filling and secure sealing.

Specification
Up to 120 carton/min
Applicable for blister plates, bottles, sachets, etc.
Fast delivery: approx. 15 days

Technical Table
Production capacity: 35–120 carton/min
Carton size range: L (70–185) × W (35–90) × H (14–50) mm
Instruction (leaflet) size: L (78–250) × W (90–170) mm
Leaflet folding: 1–4 folds
Leaflet weight: 60–70 g/㎡

Main Features

• High automation: feeding, suction of carton, carton forming, leaflet folding (1–4 folds), insertion of product and leaflet, batch printing, top flap folding and carton sealing, with automatic lack-of-material detection and rejection.
• Flexible sealing options: mechanical sealing, hot melt glue or tuck-flap closure for consistent sealing quality.
• Modular design: configurable for easy integration with upstream and downstream packaging lines.
• Low maintenance: accessible components for fast cleaning and servicing to reduce downtime.

Main Parts

• Feeder
• Manual loading station
• Carton positioning unit
• Carton forming unit
• Truss arm
• Carton sealing unit
• Finished product inspection

Technical characteristics

• Production capacity: 35–120 cartons per minute (typical)
• Maximum throughput: up to 120 cartons/min
• Carton size range: L 70–185 mm × W 35–90 mm × H 14–50 mm
• Instruction (leaflet) size: L 78–250 mm × W 90–170 mm
• Leaflet folding: 1–4 folds
• Leaflet weight: 60–70 g/㎡
• Applicable product types: blister plates, bottles, sachets and similar items
• Sealing methods: mechanical sealing, hot melt glue or tuck-flap closure
• Integration: supports inline connection with blister and pillow packing equipment
• Delivery lead time: approx. 15 days (fast delivery)
• Quality features: material testing, batch printing, lack-of-material detection, automatic rejection, finished product inspection
