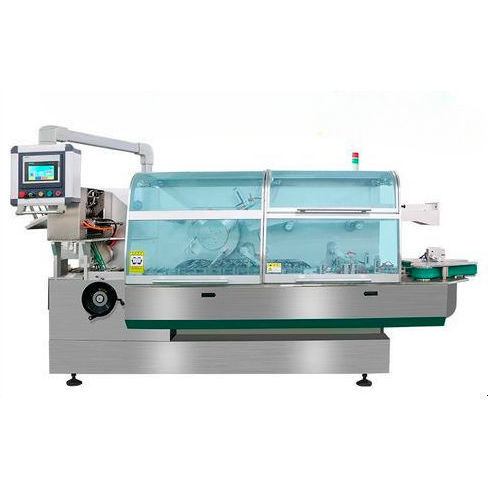

Horizontal cartoning machine RD-ZH-260W

for the cosmetics industryfor the food industryfor chocolate products

Product overview
High-speed blister cartoning machine for automated insertion of blister plates, bottles and sachets into cartons. Designed for continuous production in pharmaceutical, food, cosmetic and electronic industries where high throughput and repeatable placement are required. Compact layout for integration into existing production lines.

Key benefits

• Increased throughput: capable of up to 260 cartons per minute to meet high-volume production demands.
• Lower operational costs: reduces manual handling and associated labor costs.
• Improved packaging consistency: consistent carton placement and sealing for uniform presentation.
• Space-efficient design: compact footprint eases factory layout and line integration.

Applications
Suitable for packaging blister plates, bottles, sachets and similar items in sectors such as pharmaceuticals, healthcare products, skincare/cosmetics, oral care (toothpaste) and foodstuffs (biscuits, chocolate).

Main features

• High positioning precision to ensure each product is accurately placed into its carton.
• Multi-product capability supporting a wide range of product types and carton sizes/shapes.
• High automation level: from product feeding to finished output with minimal manual intervention.
• Quick format changeover: adjustments for product specifications and packaging parameters via simple settings.

Main parts / process steps

• Oscillating feeding
• Carton loading (cartons in place)
• Carton forming (folded lugs)
• Carton sealing
• Output conveyor
• Finished products inspection

Technical specifications

• Capacity: up to 260 cartons/min
• Carton size (L × W × H): (70–180) × (35–80) × (14–50) mm
• Carton magazine (manual) size: (80–250) × (90–170) mm
• Air pressure: 0.6 MPa
• Air consumption: 120–200 L/min
• Delivery time: 15 days
