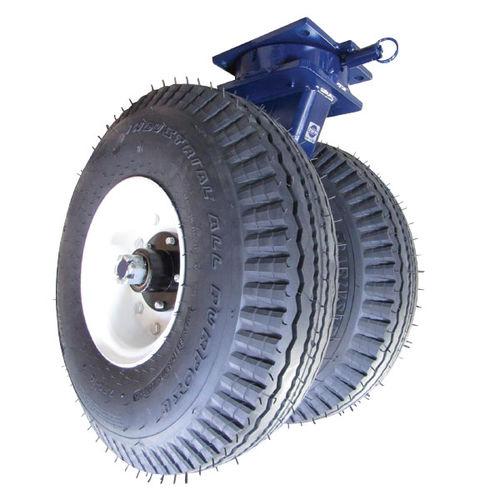

caster with pneumatic tire / swivel / base plate / double
Pneumatic series

Add to MyDirectIndustry favorites
Compare this product
caster with pneumatic tire / swivel / base plate / double caster with pneumatic tire / swivel / base plate / double - Pneumatic series
{{requestButtons}}

Characteristics

  • Type:

    swivel

  • Mount:

    base plate

  • Other characteristics:

    double, with pneumatic tire

  • Wheel diameter:

    Min.: 8 in

    Max.: 25 in

  • Load capacity:

    Min.: 300 lb (136 kg)

    Max.: 7,260 lb (3,293 kg)

Description

RWM’s pneumatic casters are designed for applications that require a cushioned ride, including but not limited to carts and trucks carrying sensitive materials and parts, glass, ceramics, electronics, chemicals, sound and lighting equipment, movie production equipment (i.e., cameras), etc. Pneumatic casters are also useful on uneven floors and in outdoor environments.

To learn more about our pneumatic casters, give us a call at 866-254-1110 or contact us online today!

46 SERIES
Swivel Section: Cold-formed top plate, yoke, and button are all heat treated to prevent brinelling, improve swivel action, and increase service life. Load and thrust bearings are hardened and ground, and rotate on hardened raceways. All swivel sections are equipped with a lubrication fitting for field maintenance. Notched yokes are standard for these pneumatic swivel casters. Zinc plated finish to protect from corrosion.

65 SERIES
Raceway Design: Patented Kingpinless™ single ball bearing precision machined raceway, to 53 Rockwell C minimum, lube fittings for swivel bearings and for wheel bearings. Swivel section features a 2-3/8″ diameter raceway with 3/8″ ball bearings. Notched yokes are standard. Zinc plated finish to protect from corrosion.

76 SERIES
Raceway Design: Patented Kingpinless™ single ball bearing precision machined raceway hardened to 53 Rockwell C minimum. Swivel section features a 3″ diameter raceway with 1/2″ ball bearings. Lube fittings for swivel bearings and wheel bearings. Notched yokes are standard. Laguna blue powder coat finish.
