fixed caster / base plate / for medium loads / steel
47 series

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product
fixed caster fixed caster - 47 series


  • Type:


  • Mount:

    base plate

  • Other characteristics:

    for medium loads, steel

  • Wheel diameter:

    Min.: 4 in

    Max.: 8 in

  • Load capacity:

    1,500 lb (680 kg)

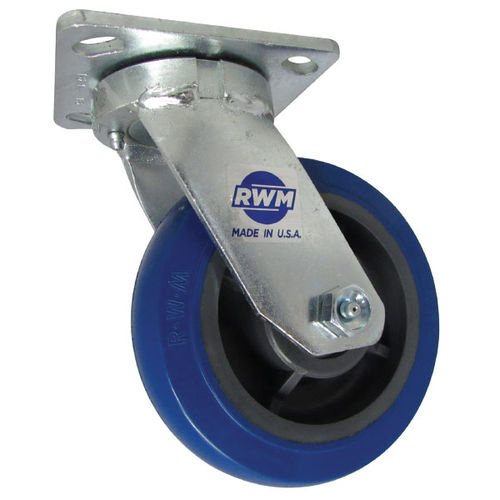

RWM Caster has designed the lightest duty Kingpinless™, 47 caster series, which is excellent in withstanding shock, continuous use and abusive conditions. This series features a patented ball bearing precision machined offset raceway hardened to 53 Rockwell C. minimum. Swivel section with capacity of 1500lbs, is supplied with lubrication fitting for field maintenance and features two 1/8" diameter raceway with 1/4" ball bearing & standard notched yokes. Product showcases leg thickness of 1/4" formed steel, Axle: 1/2" bolt and locking nut drilled with lube fitting,mounting plate: 4"x4-1/2"x1/4", mounting bolt diameter: 3/8", bolt hole spacing: 2-5/8"x 3-5/8" slotted to 3"x3" and a zinc finishing to prevent corrosion.
