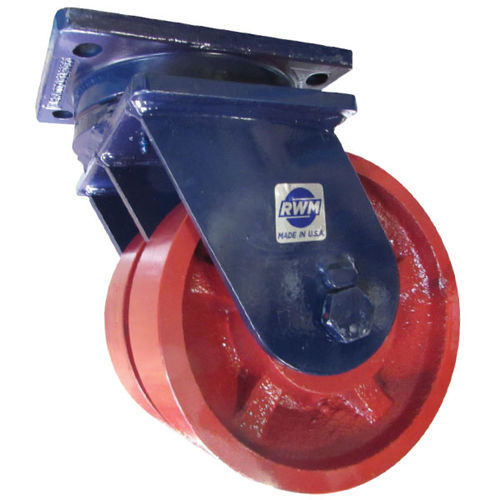

KINGPINLESS DUAL WHEEL CASTERS
RWM’s 2-95 Series Kingpinless™ Dual Wheel Casters feature all of the benefits of our patented Kingpinless™ raceway and offer twice the capacity load. Dual wheel casters offer high weight capacities with minimal overall heights, better load distribution, floor protection and mobility than single wheel casters. This is a result of spreading the weight over a wider floor area while offering wheel differential action, resulting in less friction between the wheels and the floor, requiring less effort for the caster to swivel. Our 2-95 Series Casters are proudly made in the USA!
Raceway Design - 4-1/2″ diameter with 3/4″ diameter carbon steel balls. Precision machined and hardened to 53 Rockwell C minimum. Load and thrust are accommodated by our patented design. Sealed raceway is standard.
Capacity - Up to 20000 lbs.
Leg Thickness - 3/8” thick.
Axle - 3/4″ bolt and nut for 3″ wide, 1″ or 1-1/4″ bolt and nut for 4″ wide, 1-1/4″ bolt and nut for 5″ wide.
Finish - Laguna Blue powder coat.
Wheels - 3″ wide wheels are available with either a 1″ roller bearing that rotates on 3/4″ x 1″ x 3-9/16″ hardened and ground spanner bushings or 3/4″ tapered bearings that rotate on a 3/4″ axle. 4″ and 5″ wheels are available with either a 1-1/4″ I.D. roller bearings which rotate on a hardened and ground spanner bushing or 1- 1/4″ tapered bearings which rotate on the axle. All wheels are equipped with lubrication fitting.
Mounting Plate Size - 6-1/4″ x 7-1/2″ x 1/2″ swivel top plate, 6″ x 7-1/2″ x 1/2″ rigid top plate
Bolt Hole Spacing - 4-1/2″ x 6″, slotted to 4-1/8″ x 6-1/8
Mounting Bolt Diameter - 1/2”
Mounting Plate Thickness - 1/2”
