Inkjet Marking gun R10H

for plasticsfor paperfor glass

Overview

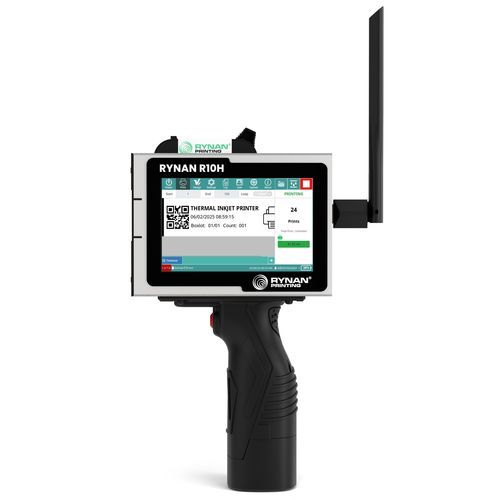

RYNAN R10H is a portable handheld 1-inch Thermal Inkjet (TIJ) batch coder designed for industrial marking. Compact and wireless, it connects via Wi‑Fi and integrates with labelling software to print directly onto primary and secondary packaging, enabling on-the-spot coding in production lines, warehouses and mobile operations while reducing label waste.

Key Features

• Wi‑Fi enabled portable batch coder
• Print height up to 1 inch (25.4 mm)
• Prints text, barcodes, serial numbers and expiry dates
• Supports inks for porous, semi‑porous and non‑porous surfaces
• Colour display with WYSIWYG graphical interface
• 5‑inch LCD touchscreen
• 300 DPI high‑resolution printing
• Wi‑Fi remote access and wireless integration with labelling software
• Compact, handheld design for on‑the‑spot or mobile printing

Applications

• Primary and secondary packaging marking
• Food & Beverage: cartons, bottles, pouches and similar packaging
• Carton boxes and secondary packaging printing
• Warehouse and mobile operations requiring flexible handheld coding

Additional Product Information

• Prints up to 1 inch (25.4 mm) print height
• One‑inch inks available (aqueous and solvent formulations)
• Designed to reduce packing waste by replacing labels with direct printing
• 24 months limited warranty

Technical specifications

• Product name: RYNAN R10H
• Technology: Thermal Inkjet (TIJ)
• Connectivity: Wi‑Fi (wireless), Wi‑Fi remote access
• Maximum print height: 1 inch (25.4 mm)
• Display: 5‑inch LCD touchscreen, colour WYSIWYG graphical interface
• Print resolution: 300 DPI
• Ink compatibility: One‑inch inks (aqueous/solvent) for porous, semi‑porous and non‑porous surfaces
• Applications: text, barcodes, serial numbers, expiry dates on cartons, bottles, pouches (primary & secondary packaging)
• Use case: portable batch coding for production, warehouses and mobile operations
• Warranty: 24 months limited warranty
