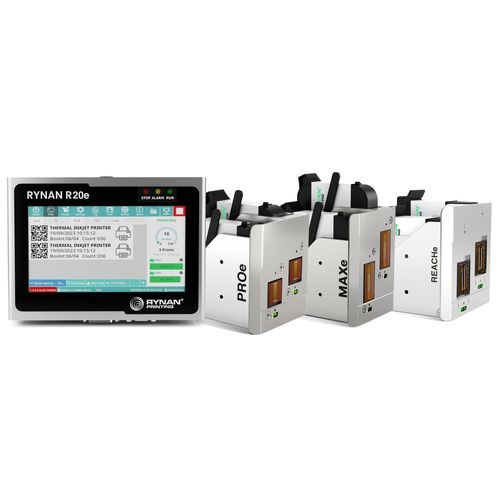

Controller module with display R20e series

Overview
The RYNAN R20e is a thermal inkjet (TIJ) dual-head controller engineered for production-line product marking, packaging and label printing. It supports PROe, MAXe and REACHe printheads and is suitable for primary and secondary packaging as well as uneven or curved substrates.

Key Features

• Dual-head TIJ controller compatible with PROe, MAXe and REACHe printheads
• 7-inch colour LCD with WYSIWYG graphical interface for fast job setup and preview
• Supports TIJ 2.5 inks (aqueous/solvent/UV), One-Inch inks (aqueous/solvent) and Brady inks
• High-quality print modes up to 600 DPI (commonly used at 300 DPI)
• Designed for continuous operation on high-speed production lines
• 24-month limited warranty

R20e Variants & Typical Uses

• R20e PROe — Optimized for high-resolution small text and variable data on primary packaging (typical maximum print height ~1 inch / 25.4 mm).
• R20e MAXe — Suited to outer case and secondary packaging with larger print heights for box coding (typical maximum print height ~2 inches / 50.8 mm) and consistent barcode printing.
• R20e REACHe — Designed for uneven or curved surfaces using high-adhesion inks to produce durable codes on challenging substrates such as PVC.

Industry Applications

• Food & Beverage — batch codes, expiry dates and barcodes on primary and secondary packaging
• Pharmaceuticals — precise small text, barcodes and variable data on diverse packaging formats
• Carton and outer case coding — high-speed box marking and barcode application
• Special substrates — printing on curved, textured or non-flat materials using REACHe printheads and penetrating inks

Technical specifications

• Controller type: Thermal Inkjet (TIJ) dual-head controller
• Compatible printheads: PROe, MAXe, REACHe
• Display: 7-inch colour LCD
• User interface: WYSIWYG graphical interface
• Print speed: Up to 76 m/min at 300 DPI (dependent on model and configuration)
• Print quality: Up to 600 DPI in high-resolution mode (commonly 300 DPI operational)
• Maximum print height (by variant): PROe ~1 inch (25.4 mm); MAXe ~2 inches (50.8 mm)
• Supported inks: TIJ 2.5 (aqueous/solvent/UV), One-Inch (aqueous/solvent), Brady inks
• Applications: primary packaging, secondary/outer case, labels, uneven/curved substrates
• Warranty: 24 months limited warranty
