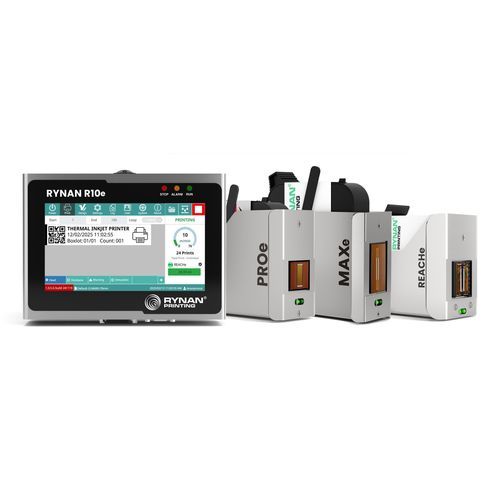

Thermal inkjet marking and coding device R10e series

inkjetfor the food industryfor cardboard boxes

Overview
The RYNAN R10e controller is a thermal inkjet (TIJ) single-head controller for product marking, packaging and label printing on production lines. It supports PROe, MAXe and REACHe printheads, covering applications from high-speed primary packaging to uneven substrates and secondary packaging while focusing on print quality and straightforward operation.

Supported printheads

• PROe
• MAXe
• REACHe

Key features

• Single-head industrial TIJ controller for production line coding
• Compatible with multiple R10e printhead options (PROe / MAXe / REACHe)
• 7-inch colour LCD with WYSIWYG graphical interface for preview and control
• Supports TIJ2.5 inks (aqueous, solvent, UV) and One-Inch ink formats
• Application versatility: product marking, packaging, label printing, carton and outer-case coding
• 24 months limited warranty

R10e Series — Printer variants & applications
R10e PROe

• Suited to high-resolution coding and fine text on primary packaging
• Applicable where detailed codes and small-font printing are required (e.g., pharmaceuticals, food & beverage)

R10e MAXe

• Designed for up to 1-inch (25.4 mm) print height — suited to box and secondary packaging coding
• Delivers consistent prints for barcodes, batch numbers and variable data

R10e REACHe

• Optimised for uneven or curved surfaces using high-adhesion/penetrating inks
• Recommended for challenging substrates such as PVC and curved containers

Inks & consumables

• TIJ2.5 formulations: aqueous, solvent and UV
• One-Inch inks (aqueous/solvent) supported for larger print heights
• Compatibility notes: Brady inks referenced; RYNAN R-CURE for curing where applicable

Display & user interface

• 7-inch colour LCD screen
• WYSIWYG graphical interface for output preview and simplified operator control

Performance

• Print speed up to 76 m/min at 300 DPI (as stated)
• High-resolution modes referenced up to 600 DPI
• Other listed mode: 300×200 DPI at up to 45 m/min (as stated)

Industry applications

• Food & beverage — batch codes, expiry dates and barcodes on primary and secondary packaging
• Pharmaceuticals — small-text and barcode printing on diverse packaging formats
• Carton/box coding — secondary packaging and outer-case marking
• Challenging substrates — use REACHe with penetrating/high-adhesion inks for PVC and curved items

Certifications / Warranty

• 24 months limited warranty

Technical specifications

• Model series: R10e (supports PROe, MAXe, REACHe printheads)
• Controller type: TIJ (thermal inkjet) single-head controller
• Display: 7-inch colour LCD with WYSIWYG interface
• Supported inks: TIJ2.5 (aqueous / solvent / UV), One-Inch inks (aqueous/solvent), Brady inks referenced
• Max print height: up to 12.7 mm (PROe) and up to 25.4 mm (MAXe) depending on printhead
• Print speed examples: up to 76 m/min @ 300 DPI; other modes include up to 45 m/min @ 300×200 DPI
• Print resolution: modes referenced up to 600 DPI
• Applications: primary packaging, secondary packaging, carton/box coding, curved & uneven surfaces
• Warranty: 24 months limited warranty
