Label print and apply application print engine R60 series

direct packaging film

Overview

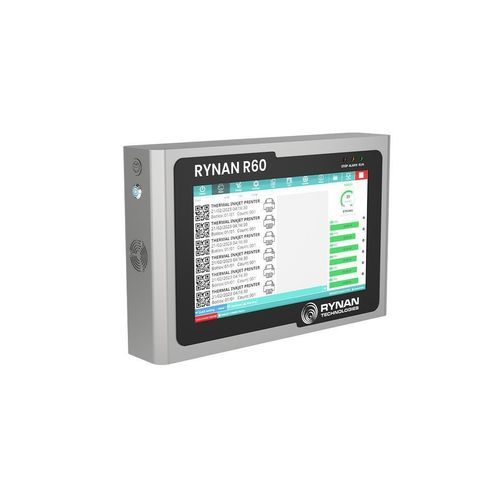

The RYNAN R60 is a 10-inch Thermal Inkjet (TIJ) controller engineered for industrial coding and marking operations requiring flexible multi-lane or large print-height capability. It supports up to six PRO, MAX or REACH TIJ printheads and is compatible with a broad range of inks for versatile substrate coverage.

Key Features

• 10-inch colour LCD with WYSIWYG graphical interface for fast job setup and preview
• Scalable: supports up to six PRO / MAX / REACH printheads for multi-lane and high-throughput lines
• Three variants optimized by application: PRO (high-speed), MAX (large print height/outer case), REACH (curved and uneven surfaces)
• Compatible with TIJ2.5 inks (aqueous, solvent, UV), One-Inch inks (aqueous/solvent) and Brady (MEK-solvent) inks
• 24 months limited warranty

R60 PRO

• Intended for: high-speed continuous printing
• Supports up to 6 printheads
• Print speed: up to 76 m/min at 600 DPI
• Print quality: up to 600 DPI

R60 MAX

• Intended for: outer case printing and large print-height tasks
• Maximum print height: up to 6 in (152.4 mm)
• Print speed: up to 40 m/min at 300 DPI
• Print quality: up to 300 DPI

R60 REACH

• Intended for: printing on curved, uneven or irregular substrates
• Print speed: up to 25 m/min
• Print quality: up to 300 × 200 DPI

Display & Interface

• 10-inch colour LCD
• WYSIWYG graphical interface for visual job composition and on-screen preview

Inks & Consumables

• Supports TIJ2.5 inks: aqueous, solvent, UV
• Supports One-Inch inks: aqueous, solvent
• Supports Brady (MEK-solvent) inks

Applications

• Food & beverage packaging coding
• Pharmaceutical and medical packaging marking
• Carton and outer case printing
• Printing on PVC, pipes and other curved or uneven substrates

Warranty
24 months limited warranty

Technical specifications

• Controller type: 10-inch TIJ controller
• Supported printheads: up to 6 PRO / MAX / REACH printheads
• Display: 10-inch colour LCD with WYSIWYG GUI
• Print speeds (by variant): PRO up to 76 m/min @ 600 DPI; MAX up to 40 m/min @ 300 DPI; REACH up to 25 m/min @ 300 × 200 DPI
• Print quality: up to 600 DPI (variant dependent)
• Maximum print height (MAX): up to 6 in (152.4 mm)
• Ink compatibility: TIJ2.5 (Aqueous / Solvent / UV), One-Inch (Aqueous / Solvent), Brady (MEK-Solvent)
• Primary use cases: multi-lane setups, high-volume product marking, packaging and label printing
• Variants: R60 PRO, R60 MAX, R60 REACH
• Warranty: 24 months limited
