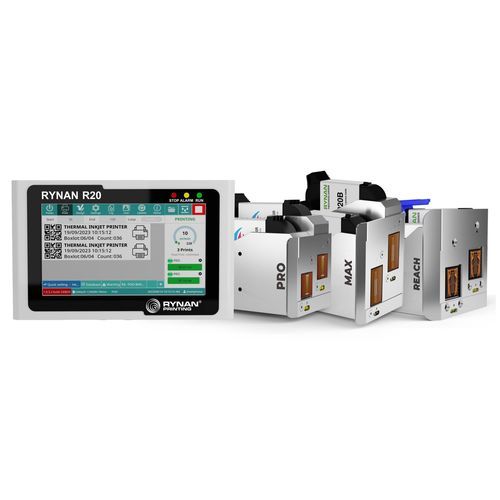

Thermal inkjet printer R20 Series

for integrationcolorhigh-resolution

Overview
RYNAN R20 is a versatile multi-head thermal inkjet (TIJ) printer and controller supporting PRO, MAX and REACH printheads. It delivers industrial inline coding for production lines, product marking and packaging printing, enabling high-resolution output and up to 2-inch (50.8 mm) print height across a range of substrates.

Key Features

• Modular multi-head architecture compatible with PRO, MAX and REACH printheads
• Up to 2 printheads per system (dual-printhead capability)
• 7-inch colour LCD with WYSIWYG graphical touchscreen
• Supports TIJ 2.5 inks (Aqueous / Solvent / UV), One-Inch inks and Brady solvent inks
• Suitable for barcodes, batch numbers, expiry dates and variable data on primary and secondary packaging
• 24-month limited warranty

R20 PRO
Optimised for high-resolution coding and small text on primary packaging where fine detail and variable data are required.

R20 MAX
Designed for outer case and carton printing, delivering up to 2-inch (50.8 mm) print height for clear, consistent barcodes and larger variable-data fields.

R20 REACH
Developed for curved or uneven surfaces, using high-adhesion and penetrating inks for challenging substrates.

Print Speed & Quality
Print speed up to 76 m/min at 300 DPI; high-resolution output reported up to 600 DPI for select variants. Statements reproduced from the product page.

Industry Applications

• Food & Beverage: batch and expiry codes on primary and secondary packaging
• Pharmaceuticals: accurate small text, barcodes and variable data on diverse packaging formats
• Cartons and industrial substrates: box coding and secondary packaging marking

Technical specifications

• Series: R20 Series
• Controller: Thermal Inkjet (TIJ)
• Supported printheads: PRO, MAX, REACH
• Maximum printheads per system: up to 2
• Display: 7-inch colour touchscreen with WYSIWYG interface
• Print speed: up to 76 m/min at 300 DPI (as reported)
• Print quality: up to 600 DPI (some variants reference 300 DPI)
• Print height: up to 2-inch (50.8 mm) for MAX
• Ink compatibility: TIJ 2.5 (Aqueous / Solvent / UV), One-Inch (Aqueous / Solvent), Brady (Solvent)
• Best suited for: PRO for high-resolution primary coding, MAX for outer case/carton printing, REACH for curved/uneven surfaces
• Warranty: 24-month limited warranty
