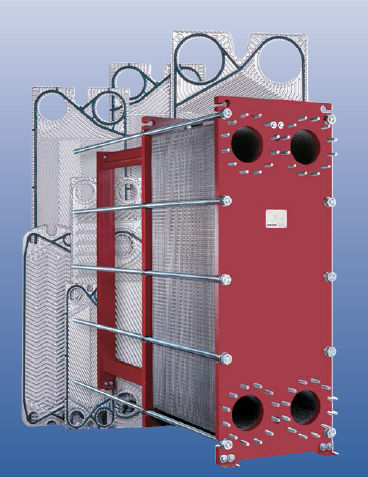

Plate heat exchanger PFX
liquid/liquidtitaniumnickel

plate heat exchanger
plate heat exchanger
plate heat exchanger
Add to favorites
Compare this product

Characteristics

Type
plate
Fluid
liquid/liquid
Material
titanium, nickel, steel
Other characteristics
custom, stainless steel
Operating pressure

100 psi, 150 psi, 300 psi

Description

ApplicationsCentral HVAC and ancillary cooling, lube oil coolers (turbines), seal water coolers (vacuum pumps), gearbox oil cooling (wind turbines), ground water isolation exchangers (geothermal) DescriptionThe Armstrong PFX plate and frame heat exchangers consist of a number of specially corrugated metal plates assembled in a frame and bolted between two pressure plates (one fixed and one adjustable.) Armstrong plate designs are optimized for best water-to-water heat transfer providing enhanced performance especially in HVAC applications. Materials Frames and pressure plates: stainless steel, painted carbon steel Bolts: stainless steel, zinc-coated carbon steel Support column (optional): stainless steel, painted carbon steel, aluminum Plates: stainless steel, nickel alloys, titanium (-alloys) Gaskets: elastomer materials, sigma coat, compressed fibers (non-asbestos) ConfigurationRange of different connection types and materials. ASME code construction Performance range Standard models available in three pressure ratings: 100 psi, 150 psi, or 300 psi (690 kPa, 1034 kPa and 2068 kPa) Custom designs available for higher pressure requirements Power RangeN/A
