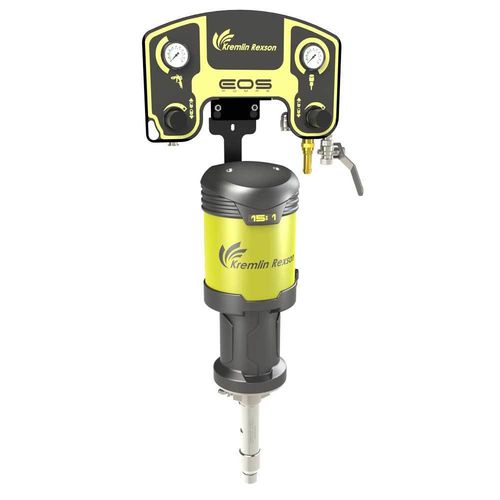

Cartridge pump 15C50

paintair-drivennormal priming

The 15C50 Airmix® pump is perfect for painting medium quantities of fluid products, water or solvent based. Up to 90 bar of fluid pressure to compensate pressure drops. Productivity for all Good chemical compatibility with GT or MB-A cartridges. Two gun management available. Suction rod or gravity hopper. Performance ♦ Quiet and balanced air motor for constant delivery ♦ Ergonomic design ♦ Pulse-free for a superior finish ♦ Able to prime at very low air pressure (0.6 bar / 8.7 psi) for easy paint loading ♦ Designed to eliminate dead zones for quick color changes Productivity ♦ Closed construction - zero injury risk ♦ Lubricant protected from external contamination ♦ Easy rotatable outlet fitting to fit every configuration ♦ No tie rods - intermediate hosing for easy assembly ♦ Leak indicator weep hole for fast visual inspection ♦ Simple coupling & quick disassembly ♦ Large foot valve (Ø20, Ø14) to handle high viscosity materials up to 5,000 cPs - carbide seat Sustainability ♦ Differential air motor for a stall-free system ♦ Quick reversing valve to eliminate pump surge ♦ Ice -free air motor ♦50% fewer parts vs competition, less spare parts required ♦ GT cartridge: -no throat packing maintenance -low friction -flat cartridge body design to eliminate dead zones for easy flushing ♦ Ultra chrome-plated piston rodless friction & abrasion resistance for increased pump life ♦ Exhaust valve (upper) has large passages and carbide seat
