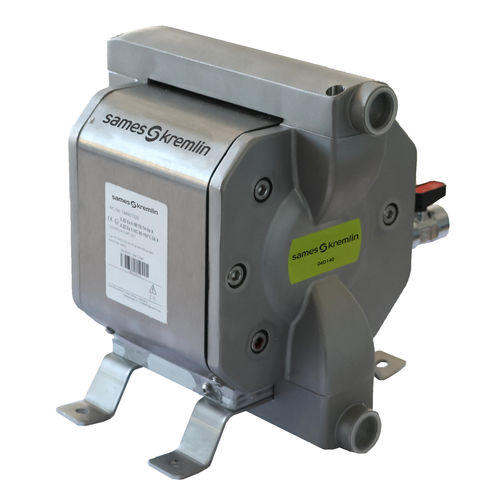

Paint pump 04D140
for solventsfor adhesivesfor bases

paint pump
paint pump
paint pump
paint pump
Add to favorites
Compare this product


Characteristics

Fluid
paint, for solvents, for adhesives, for bases
Operation
air-driven
Priming
normal priming
Technology
double-diaphragm
Domain
industrial, agriculture, for the construction industry, for the automotive industry
Applications
recirculation
Material
stainless steel
Mobility
stationary
Other characteristics
compact, high-performance, low-pressure, low-noise, rugged, for high flow rates
Width

188 mm (7.4 in)

Length

232 mm (9 in)

Height

251 mm (10 in)

Flow

50 l/min (13.2086 us gal/min)

Weight

15 kg (33.07 lb)

Pressure

Min.: 0 bar (0 psi)

Max.: 6 bar (87.023 psi)

Fluid temperature

65 °C (149 °F)

Description

The 04D140 pneumatic, double diaphragm pump is designed for low-pressure circulating systems with a ratio of 3.5:1. These pumps will deliver high performance and durability. ULTIMATE HIGH PERFORMANCE, COMPACT DESIGNED CIRCULATION PUMP *Perfect for frequent color changes *Reliable and durable *Low cost of ownership Performance ♦ Low shear technology due to diaphragm short stroke ♦ Compact, light and modular for easy integration ♦ Low noise pollution due to cutting edge design with integrated silencer Productivity ♦ High flow rate due to a short-stroke high frequency diaphragm ♦ Quick and easy flushing for fast and frequent color changes ♦ Easy flushing due to optimized designed fluid chamber ♦ Compatible with piggable circulation systems Sustainability ♦ Durable pump, all stainless steel body, ceramic pneumatic valve and long-lasting PTFE diaphragms ♦ Advanced soft seat design minimizes paint shearing ♦ Low & easy maintenance (easy access to wearing parts, long-life diaphragm)
