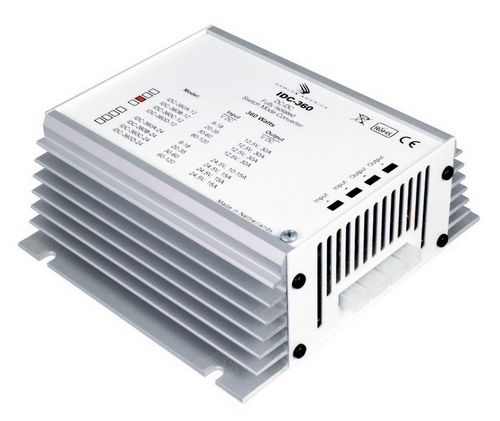

Chassis-mounted DC/DC converter IDC-360A-12

step-downinsulated

Samlexamerica's IDC-360A-12 is highly efficient line of 360 Watt isolated DC-DC converters. It is suitable for applications involving galvanic isolation between the input and output. It offers controlled output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and an output current of 30 amps. The unit is secured against over voltage, reverse polarity connection, overheating and short circuit as it provides fold-back current limiting and compact housing. It comes off with push-on flat blade quick disconnect connectors. It is compliant to European standards: EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
