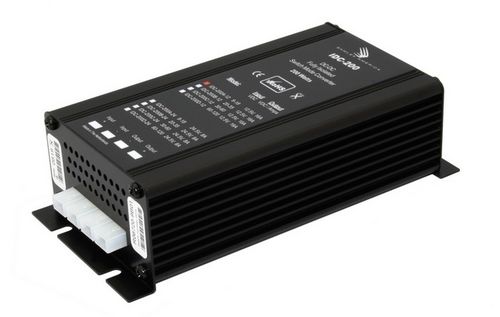

Chassis-mounted DC/DC converter IDC-200A-24 step-downstep-upinsulated
Add to favorites
Compare this product
Characteristics
- Configuration
- chassis-mounted
- Electrical characteristics
- step-down, step-up
- Other characteristics
- insulated
- Input voltage
Max.: 18 V
Min.: 9.2 V
- Output voltage
24 V
- Power
200 W
Description
The Samlex IDC-200 series are suitable for applications requiring galvanic isolation between the input and output. Provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 9-18 Volts, and rated output current of 8 Amps- at 18 Volts input. Features include a compact housing unit, overheating, over voltage, reverse polarity connection and short circuiting, due to the fold-back current limiting. The unit benefits from push-on flat blade quick disconnect connectors, and has been certified to the EMI/EMC standard, and also conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.
