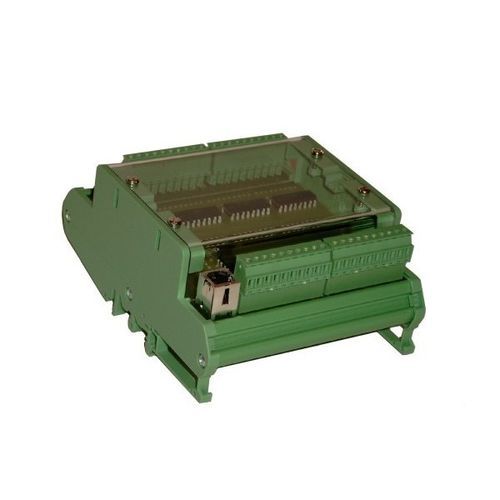

Digital I/O module iUSB-DIO16USB16 digital outputs16 digital inputs
Add to favorites
Compare this product
Characteristics
- Signal type
- digital
- Interface
- USB
- Number of inputs/outputs
- 16 digital inputs, 16 digital outputs
- Applications
- for control cabinets
- Mounting
- DIN rail, plug-in, screw-in
- Other characteristics
- with optocoupler
Description
Overview
The iUSB modules are compact, industrial-grade intelligent I/O systems for measurement, control, regulation and monitoring tasks. Typical applications include industrial automation, laboratory and test automation, process control (MSR), production data acquisition (BDE), remote-control systems and building automation. Their compact design allows installation in both industrial control cabinets and smaller enclosures.
Technical specifications
The iUSB modules are compact, industrial-grade intelligent I/O systems for measurement, control, regulation and monitoring tasks. Typical applications include industrial automation, laboratory and test automation, process control (MSR), production data acquisition (BDE), remote-control systems and building automation. Their compact design allows installation in both industrial control cabinets and smaller enclosures.
Technical specifications
- Galvanic isolation between control circuit and load circuit (I/O): > 1 kV
- Interference-resistant design suitable for industrial use
- Control via a simple API
- Access time ≤ 2 ms
- 12 Mbit USB bus (USB 2.0 Full Speed)
- DIN-rail mounting
- I/O connections via plug/screw terminals
- Dimensions: 103 x 125 x 58 mm
- Extended timeout function
- Integrated input signal pre-evaluation
- Inputs wired in groups of four
- 16 opto-isolated inputs, 24 Vdc
- 16 galvanically isolated outputs, 24 Vdc / max. 1.5 A
- USB–I/O isolation: > 1 kV
- I/O–I/O isolation: > 160 V
