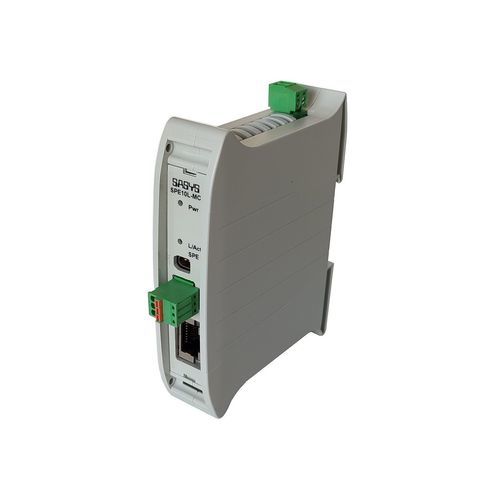

Media converter SPE10L-MC

Ethernet mediaDIN rail

Description
Single Pair Ethernet (SPE) 10BASE-T1L media converter. The Single Pair Ethernet standard provides an efficient connection of sensors down to the field level using two-wire cabling. It enables new and existing sensors to be connected up to 1000 m to standard networks, IIoT and cloud systems. The SPE10L-MC media converter links 10BASE-T and 10BASE-T1L (SPE) and can also be used solely as a range extender.

Technical data (table)
Product group: Ethernet media converter
Media: 10BASE-T, 10BASE-T1L
Supply voltage: 5 - 58 Vdc
Max. current consumption: 70 mA
Product type: Media converter
Ethernet 1: RJ45 – 10/100BASE-T
Ethernet 2: IEC 63171-2, 3-pin spring terminal – 10BASE-T1L, AWG 16-24
Maximum transmission distance: 1000 m
Galvanic isolation: 1500 V
Mounting type: DIN-rail TH35 according to EN60715
Housing dimensions: 106 x 80 x 23 mm

Ordering information
Article number: 401100.00
Designation: SPE10L-MC
Product group: Industrial network component
EAN:
HS code: 85176200
Country of origin: DE

Downloads

• Datasheet
• Manual
• Declaration of conformity
• Specification text

Features / technical specifications

• Media: 10BASE-T, 10BASE-T1L
• Maximum transmission distance: 1000 m
• Supply voltage: 5 - 58 Vdc
• Max. current consumption: 70 mA
• Galvanic isolation: 1500 V
• Connections: RJ45 (10/100BASE-T) and IEC 63171-2 / 3-pin spring terminal (10BASE-T1L, AWG 16-24)
• Mounting: DIN-rail TH35 according to EN60715
• Housing dimensions: 106 x 80 x 23 mm
