Modular formwork system ECO

lightweightslabbeam

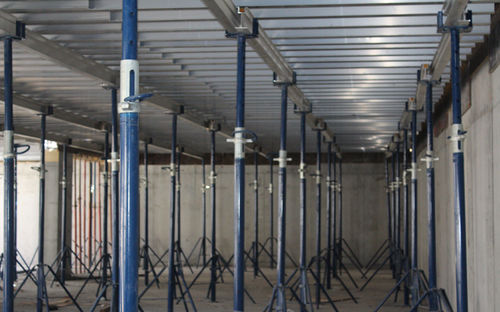

Scaffco ECO System is the fast, adaptable slab formwork for any layout. No bracing required, telescopic formwork beams of aluminum or H20 timber for decking, makes the system productive in no time. Adapts to any layout - Adapt easily around walls and columns - Optimized for various slab thicknesses - Freely repositioning the props with the beams as the layout becomes round Safe and accessible - Prop designed for axial load without horizontal connections - System continuous decking neglects the need for bracing making inspection easier Aluminum Beam S-150 Light weight, life long 3mm aluminum beams with high shear and moment Comes in any length required The wooden strip is fixed by screws and used to nail the forming sheets on top Timber Beam H20 Solid wood, labeled sizes for fast identification Beam end are sealed with shock absorbers that protect from humidity and UV Radiation, making the beams live 3 times their lifespan Slab Prop (Super HD) Easy-to-turn adjusting nut, that is drop forged to withstand hammer action Operational safety, achieving high load capacity of 30 KN at all opening levels Geometric Adaptability The primary beams can easily turned to reposition according to slab geometry The telescopic secondary beams fills the gaps Safe Striking The Early Striking Head provides the perfect solution to maintain propping while removing the beams
