Fixed scaffolding SCAFFLOCK
modularstairwayfacade

fixed scaffolding
fixed scaffolding
fixed scaffolding
fixed scaffolding
fixed scaffolding
fixed scaffolding
fixed scaffolding
Add to favorites
Compare this product


Characteristics

Type
fixed
Other characteristics
modular, stairway
Applications
facade

Description

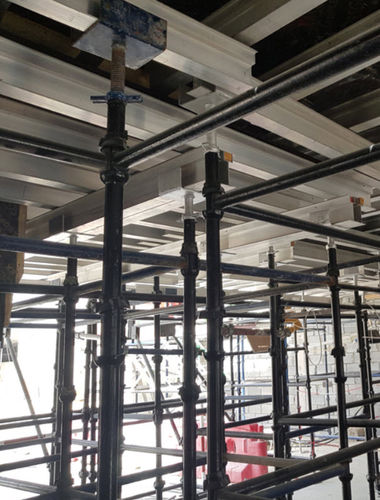

The SCAFFLOCK system is the most reliable shoring system for slab support, adaptable to any construction project and provide safe solution as an Access system at any height. Efficient Multiple propping head makes it possible to use steel, aluminum or timber decking Screw-jack head and base-jack allows for 80cm extension range for height adjustment The beam brackets allows for down stand support at any height inside the slab area Safe Multiple propping head makes it possible to use steel, aluminum or timber decking Screw-jack head and base-jack allows for 80cm extension range for height adjustment The beam brackets allows for down stand support at any height inside the slab area SCAFFLOCK Standard Withstands fresh concrete load of 40KN with just 2 connection levels and can only increase with additional connection levels The drop-forged top cup of the standard allows for fastening the ledger ends with the standard by a simple blow of a hammer Standard height range from 0.7m up to 3.0m that can be stacked on top of each other to reach desired height Sustaining Cantilever Slab & Beam loads The cantilever frames for edge-slabs and beams sustains 10KN load and are easily fastened to the standard the same way ledgers are fastened. The frame head-jacks allows for leveling the decking of the structure. Down Stand Support at any Height Support the internal concrete down-stand beam with the Beam Bracket and maintain continuous connection of the system. The beam bracket can sustain a load of 10KN.
