Mechanical press

hydraulicfor moldingfor aluminum

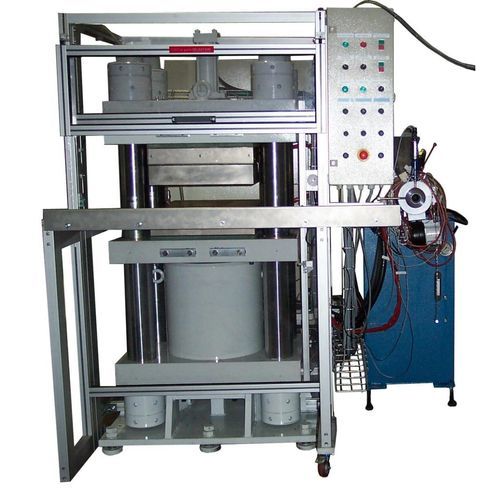

Press 600 T 500x600 The 600 tons press is used for graphite composite polymer parts molding under high pressure. Characteristics : - heating/cooling plates size 500 x 600 mm - mobile lower plate (course 150 mm) - clamping capacity 600 tons - mechanical sturcture based on 2 frames (upper and lower) held together by 4 hard chrome plated precision shafs - the cylinder pushes the mobile plate via bronze bearings guided by the precision shafts - plates are electrically heated by resistance cartridges and cooled by circulating water - a composite insulator material is on the plates for thermal insulation - plates are cooled by circulating water - dual effect hydraulic actuator working at 600 bars - opening and closing speeds are adjustable via proportional distributors - the high pressure is generated by an oil ampliier whose stroke gives a useful 8mm translation under high pressure - mobile upper plate equipped with an ejection actuator allowing the extraction of the molding plate at each cycle - fully closed press with a casing made of aluminium profiles and polycarbonate panels - front opening panel, for use of a material handling equipment for mould shift operations
