Truck-mounted mechanical sweeper Merlin 62

combustion enginegas enginediesel engine

Overview

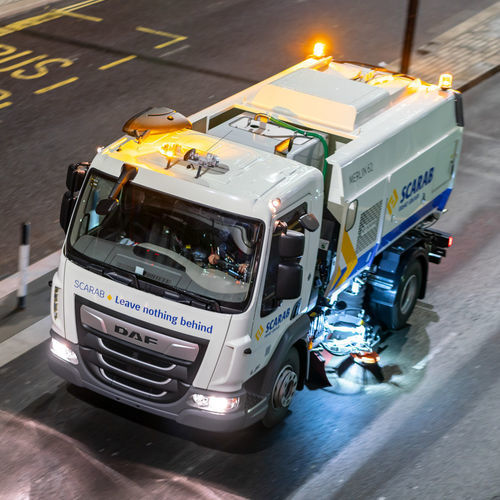

The Merlin 62 is a powerful, versatile truck-mounted road sweeper designed for mounting on truck chassis in the 10-16 tonne GVW range. It provides an unrivalled payload in its class and is suitable for municipal and contractor environments. The machine is available with single-engine operation and an intuitive CANbus control system enabling precise and efficient sweeper control.

Key design highlights

• Single-engine system powering sweeping components directly from the chassis engine for reduced fuel consumption, lower noise and emissions, less weight and reduced maintenance.
• CANbus control system with intuitive controls and a colour monitor providing configuration, vehicle condition, warnings and service reminders.
• Hydrostatic gearbox integrated into the chassis driveline enabling joystick control for forward/reverse and single-pedal operation to reduce operator fatigue.
• High suction performance from a stainless steel roof-mounted impellor with a short, efficient airflow path.
• Flexible truck-mounted solution compatible with a wide choice of chassis including DAF, Iveco, MAN, Mercedes, Volvo, Renault and Hino.
• CNG chassis option available to provide an alternative-fuel configuration with reduced gaseous emissions and acoustic improvements.

Vehicle specification (table)
Size: 10-16 tonne GVW
Sweeping speed: 0-20 mph / 0-32 kph
Hopper capacity: 6.2 cubic metres
Water tank: 1250 litres
Engine: Single Engine
Typical payload: 5500-8500 kg
Sweep width: 2365mm single / 3200mm dual

Hydrostatic system
The Scarab-designed hydrostatic gearbox is installed in the chassis driveline and allows sweeping components to be powered directly from the chassis engine. Joystick control provides forward and reverse with single-pedal control to reduce fatigue and simplify operation.

Suction performance
A 905.5mm stainless steel roof-mounted impellor is positioned to produce a short, efficient airflow path for high suction performance with reduced power consumption.

Sweeping capabilities
The Merlin 62 is available in single or optional dual sweep configuration. When suction nozzle, side brush and widesweep are in operation the machine can sweep up to 2365mm width; brushes can reach 3200mm span when dual sweeping.

Strong, robust hopper
The hopper is manufactured from corrosion- and abrasion-resistant 4003 stainless steel, shot blasted, primed with two-pack epoxy and finished with a hard-wearing topcoat. A hinged particulate screening swings down for cleaning access.

CANbus Control System
The CANbus system provides total, intuitive control with a clear display indicating sweeping configuration and vehicle condition, plus real-time monitoring and data-logging to assist troubleshooting and efficient operation.

After Sales & Support
Scarab offers tailored service and maintenance contracts, supported by a dedicated parts warehouse to supply genuine parts and trusted components to clients globally.

Options
Water

• High-pressure / High-Volume Pump with hand lance and self-retracting hose reel
• Overhead mounted high-pressure water boom
• Additional dust suppression for suction nozzles (4-jet water-boost bar in front of the nozzle)
• Additional dust suppression for suction tubes (four additional jets at top of suction tube)
• Larger water tanks
• Detergent injection kit for use with the hand lance
• Hydrant standpipe, key and 3 metres of 50 mm lay-flat hose for on-task replenishment of water
• Simultaneous wash & sweep facility

Brushes

• Dual sweep (second channel brush on opposite side + swivelling widesweep)
• Simultaneous dual sweep (both channel brushes and widesweep together)
• Auxiliary channel brush fitted ahead of standard brush on extending/swing-out mount
• Adjustable pressure control for channel brushes and widesweep
• Tilting brush
• Vari Brush (variable in/out brush control)

Suction system

• Door-mounted wander hose
• Rear-mounted swing-out wander boom
• Overhead-mounted wander boom

Miscellaneous options

• Reduction gearbox in driveline for Unidrive variants
• CCTV camera to offside brush and/or rear of vehicle
• Centralised lubrication system (manual or automatic)
• Alternative or additional beacons
• Fire extinguisher

Caractéristiques / spécifications techniques

• Model: Merlin 62
• Chassis GVW range: 10-16 tonne
• Sweeping speed range: 0-20 mph / 0-32 kph (operator-controllable constant sweeping speed)
• Hopper capacity: 6.2 m³
• Water tank capacity: 1250 litres (larger tanks optional)
• Engine arrangement: Single-engine (powered from chassis engine)
• Typical payload: 5500-8500 kg
• Sweep width: 2365 mm (single) / 3200 mm (dual)
• Roof-mounted impellor: 905.5 mm stainless steel
• Hopper material: 4003 stainless steel, shot blasted, two-pack epoxy primer and hard-wearing topcoat
• Drive: Hydrostatic gearbox in chassis driveline with joystick single-pedal control
• Control: CANbus control system with colour monitor, real-time monitoring and data-logging
• Fuel/alternative: Diesel or CNG chassis variants available
