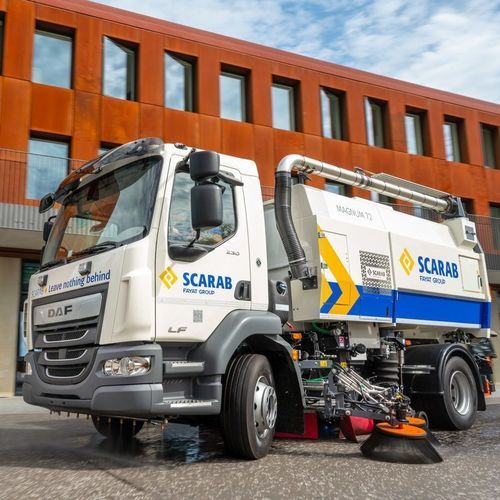

Truck-mounted suction sweeper Magnum 72

hydraulicstreetoutdoor

Overview
The Magnum 72 is a truck-mounted road sweeper for 15–18 tonne GVW chassis, engineered for municipal, construction and road maintenance tasks. Single-engine hydrostatic configuration with a 7.2 m³ hopper and water capacity from 1,800 to 2,500 litres. Scarab optional high-speed fan increases performance.

Vehicle specification
Size: 15–18 tonne GVW
Sweeping speed: 0–20 mph / 0–32 kph
Hopper capacity: 7.2 m³
Water tank: 1,800–2,500 litres
Engine: Single engine hydrostatic drive
Typical payload: 6,000–9,000 kg
Sweep width: 2,365 mm (single) / 3,200 mm (dual)

Key features

• Single-engine hydrostatic drive powers sweeping components from the chassis engine for reduced fuel use, lower noise and emissions, less weight and greater payload.
• Scarab-designed hydrostatic gearbox integrated into the chassis driveline; joystick control offering forward/reverse single-pedal operation to reduce operator fatigue.
• High suction via 905.5 mm stainless steel roof-mounted impellor; optional high-speed fan available for enhanced sweeping performance.
• Available in single or optional dual sweep configurations; combined suction nozzle, side brush and widesweep provide a 2,365 mm sweep; dual sweep up to 3,200 mm.
• Hopper built in corrosion- and abrasion-resistant 4003 stainless steel; shot blasted, two-pack epoxy primed and hard-wearing topcoat; hinged particulate screening for access and cleaning.
• Intuitive CANbus controls with colour monitor for configuration feedback, warnings, service reminders, real-time monitoring and data logging.

Options

• Water systems: high-pressure/high-volume pump with hand lance and self-retracting hose reel; overhead high-pressure boom; additional dust suppression for suction nozzles (4-jet boost bar) and suction tubes (4 extra jets); detergent injection for hand lance; hydrant standpipe, key and 3 m of 50 mm lay-flat hose; simultaneous wash & sweep facility.
• Brush options: Dual Sweep (second channel brush + swivelling widesweep); Simultaneous Dual Sweep; auxiliary channel brush on sliding/swing-out mount; adjustable pressure control; tilting brush; Vari Brush (variable in/out control).
• Suction options: rear-mounted swing-out wander boom; overhead wander boom; door-mounted wander hose.
• Miscellaneous: CCTV (offside brush and/or rear), centralised lubrication (manual or automatic), alternative or additional beacons, fire extinguisher.

Additional information
The Magnum 72 fits a wide range of chassis including DAF, Iveco, MAN, Mercedes, Volvo, Renault, Freightliner and others. For heavy-duty applications the optional high-speed fan increases sweeping capability.

Technical specifications

• Model: Magnum 72
• Hopper capacity: 7.2 m³
• Water capacity: 1,800–2,500 litres
• Recommended chassis GVW: 15–18 tonne
• Sweeping speed: 0–20 mph (0–32 kph)
• Typical payload: 6,000–9,000 kg (dependent on chassis)
• Sweep width: 2,365 mm (single) / 3,200 mm (dual)
• Drive configuration: Single-engine hydrostatic system (Scarab-designed hydrostatic gearbox)
• Fan / impellor: 905.5 mm stainless steel roof-mounted impellor; optional high-speed fan
• Hopper construction: 4003 stainless steel, shot blasted, two-pack epoxy primer, hard-wearing topcoat
• Control system: CANbus with colour monitor, data logging and real-time monitoring
• Available options: water systems, brush configurations, suction wander booms/hoses, CCTV, centralised lubrication, beacons, fire extinguisher
