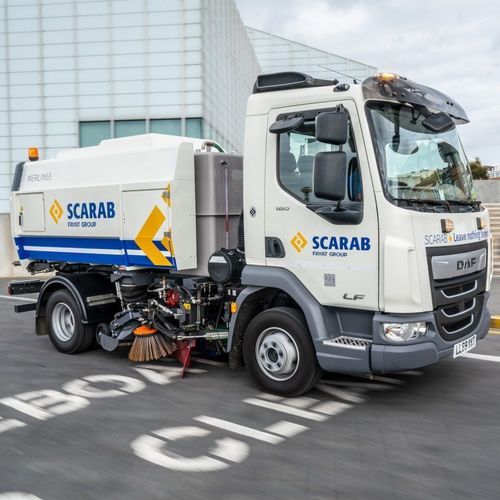

Truck-mounted sweeper Merlin 55

streethydrauliccombustion engine

Overview
The Merlin 55 is a truck-mounted road sweeper for 7.5–8.3 tonne GVW chassis. It uses Scarab's single-engine hydrostatic driveline to power sweeping components directly from the chassis engine, reducing fuel use, noise and servicing while maximising payload. The architecture supports powerful sweeping configurations including single or dual sweep, high-pressure water systems and a 900-litre water tank without compromising performance or manoeuvrability.

Vehicle specification
Size: 7.5-8.3 tonne GVW
Sweeping speed: 0-20 mph / 0-32 kph
Hopper capacity: 5.5 cubic metres
Water tank: 900 litres
Engine: Single engine (powers entire sweeper)
Typical payload: 1750 - 2000 kg
Sweep width: 2290 mm single / 2850 mm dual

Key features

• Single-engine hydrostatic system integrated into the chassis driveline, enabling propulsion of sweeping components from the chassis engine with joystick single-pedal control for forward and reverse.
• Roof-mounted 905.5 mm stainless-steel impellor positioned for a short, efficient airflow path to deliver high suction performance with reduced power consumption.
• Configurable as single or optional dual sweep; combined functions (suction nozzle, side brush and Widesweep) create a 2290 mm sweep width, dual sweeping up to 2850 mm.
• Hopper manufactured from corrosion- and abrasion-resistant 4003 stainless steel with shot blasting and two-pack epoxy primer plus durable topcoat; hinged stainless-steel mesh filter for particulate screening and easy access.
• Intuitive CANbus control system with colour monitor providing configuration, vehicle condition feedback, warnings, service reminders and real-time data logging for troubleshooting and efficiency analysis.
• After-sales support, tailored service and maintenance contracts and dedicated parts availability to support fleet operation.

Options
Water

• High-pressure/high-volume pump with hand lance and self-retracting hose reel.
• Additional dust suppression for suction nozzles (4-jet water-boost bar in front of nozzle).
• Additional dust suppression for suction tubes (four jets at top of suction tube).
• Detergent injection kit for use with hand lance.
• Hydrant standpipe, key and 3 m of 50 mm lay-flat hose for on-task water replenishment.
• Simultaneous Wash & Sweep facility.

Brushes

• Dual Sweep (second channel brush on opposite side plus swivelling Widesweep).
• Simultaneous Dual Sweep (both channel brushes and Widesweep operate together).
• Vari Brush (variable in/out brush control).

Suction System

• Door-mounted wanderhose option for extended reach and manual pickup.

Miscellaneous

• Reduction gearbox in driveline for Unidrive variants.
• CCTV camera to offside brush and/or rear of vehicle.
• Centralised lubrication system (manual or automatic).
• Alternative or additional beacons.
• Fire extinguisher.

Characteristics / spécifications techniques

• GVW: 7.5-8.3 tonne
• Sweeping speed: 0-20 mph / 0-32 kph
• Hopper capacity: 5.5 m³
• Water tank capacity: 900 litres
• Engine configuration: Single engine (powers whole machine)
• Typical payload: 1750 - 2000 kg
• Sweep width: 2290 mm (single) / 2850 mm (dual)
• Impellor: 905.5 mm stainless steel roof-mounted
• Hopper material: 4003 stainless steel, shot blasted, two-pack epoxy primer + topcoat
• Control: CANbus system with colour monitor and data logging
