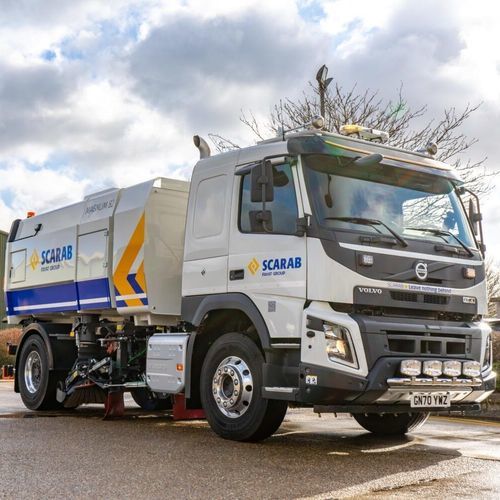

Truck-mounted mechanical sweeper Magnum 82

dieselstreetfor airport runway

Overview
The Magnum 82 is a heavy-duty road sweeper designed for civil works and specialist cleaning tasks, including airport aprons, milling residue collection and high-pressure surface cleaning. Its single-engine architecture, high-performance roof-mounted impellor and CANbus control deliver efficient suction, reduced operating complexity and flexible configuration options.

Vehicle specification
Size: 18+ tonne GVW
Sweeping speed: 0–20 mph / 0–32 kph
Hopper capacity: 8.2 cubic metres
Water tank: 1,800–4,300 litres
Engine: Single engine (truck chassis)
Typical payload: 6,000–10,000 kg
Sweep width: 2,465 mm single / 3,400 mm dual (some configurations wider)

Key features

• Single-engine operation using the truck chassis engine to power sweeping components, lowering fuel use, noise and emissions while increasing payload.
• Scarab-designed hydrostatic gearbox integrated into the driveline for direct powering of sweeping components with joystick forward/reverse and single-pedal control.
• High-speed roof-mounted impellor creating a short, efficient airflow path for strong suction with reduced power draw.
• Available in single or optional dual-sweep configurations; brush and nozzle combinations provide variable sweep widths and auxiliary brush options for extended coverage.
• Hopper manufactured from corrosion- and abrasion-resistant 4003 stainless steel with shot blasting, epoxy primer and hard-wearing topcoat; hinged particulate screening for access.
• Intuitive CANbus control with colour monitor for sweeping configuration, vehicle condition, warnings and service reminders; real-time monitoring and data logging for diagnostics.
• After-sales support including tailored maintenance contracts and dedicated parts availability.

Chassis compatibility
Suitable for 18–19+ tonne chassis including DAF, Iveco, MAN, Mercedes, Volvo and Renault.

Options (selected)
Water

• High-pressure/high-volume pump with hand lance and self-retracting hose reel
• Overhead-mounted high-pressure water boom
• Additional dust suppression for suction nozzles (4-jet water-boost bar)
• Additional dust suppression for suction tubes (four additional jets)
• Larger water tanks
• Detergent injection kit for hand lance
• Hydrant standpipe, key and 3 m of 50 mm lay-flat hose for on-task replenishment
• Simultaneous wash & sweep facility

Brushes

• Dual Sweep (second channel brush + swivelling widesweep)
• Simultaneous Dual Sweep
• Auxiliary channel brush on sliding/swing-out mount
• Adjustable pressure control for channel brushes and widesweep
• Tilting brush
• Vari Brush (variable in/out brush control)

Suction System

• Rear-mounted swing-out wander boom
• Overhead-mounted wander boom

Miscellaneous options

• CCTV camera to offside brush and/or rear of vehicle
• Centralised lubrication system (manual or automatic)
• Alternative or additional beacons and safety lighting
• Fire extinguisher

Specialist Vehicle (SV) Options
The Magnum 82 SV range includes Fully Articulating Spray Bar, Full-Width Rear Suction, Side Jets, High-Pressure Water Pump, Next Generation Control System and Remote Hopper Wash for heavy-duty specialist cleansing and right-hand drive applications.

Accessories / Technical systems

• Hydrostatic gearbox for direct driveline power and single-pedal control
• Roof-mounted high-speed impellor for efficient suction
• CANbus control with colour monitor, warnings and data logging
• Hopper constructed in 4003 stainless steel with protective coatings

Technical specifications

• Model: Magnum 82
• GVW: 18+ tonne
• Hopper capacity: 8.2 m³
• Water tank capacity: 1,800–4,300 litres
• Sweeping speed: 0–20 mph (0–32 kph)
• Sweep width: 2,465 mm (single) / 3,400 mm (dual); some configurations wider
• Engine configuration: Single engine (truck chassis engine)
• Typical payload: 6,000–10,000 kg
• Hopper material: 4003 stainless steel (shot blasted, epoxy primer, hard-wearing topcoat)
• Control: CANbus control system with colour monitor
