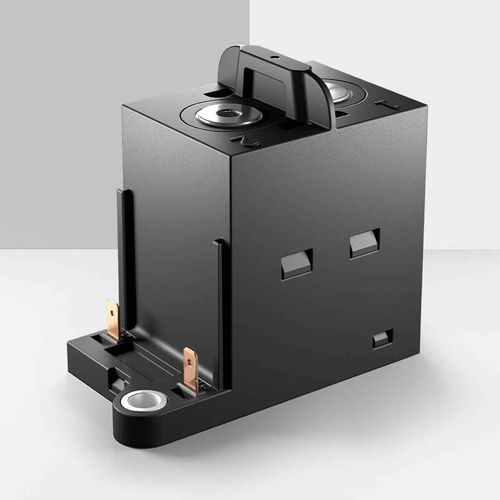

Safety contactor C803

powermagneticDC

Efficient and compact single-pole DC NO contactors up to 1,500 volts switching voltage, continuous currents up to 500 amps and high inrush and short-time currents for most diverse e-mobility applications. The contactors in the C803 series offer a breaking capacity of up to 1,800 amps at 450 volts and ensure safety in the Battery Disconnect Unit (BDU) by reliably disconnecting the high-voltage battery from the drivetrain in the event of danger. In the event of a short circuit, the C803 can rapidly handle up to 5,000 amps for 20 milliseconds – without contact welding. The switching devices are available with an energysaving PWM drive for optimum power consumption when switching and low heating when holding or with an opti­mized coil with external control for maximum efficiency. Features More efficiency: An over-life low contact resistance and lower contact heating reduces energy losses and require less cooling Full bidirectionality: Safe disconnection of high power during charging and discharging thanks to specially designed extinguishing chamber; V2G ready Safe breaking of high power: High breaking capacity under full load up to 1.5 megawatts thanks to innovative main contact system No risk of explosion: Permanent magnetic arc extinguishing without gas encapsulation equalises overheating and overpressure at all times High mounting compatibility: Compact size specially designed for automotive applications High safety level: Mirror contact for safe feedback of the switching status according to IEC 60947-4-1, annex F
