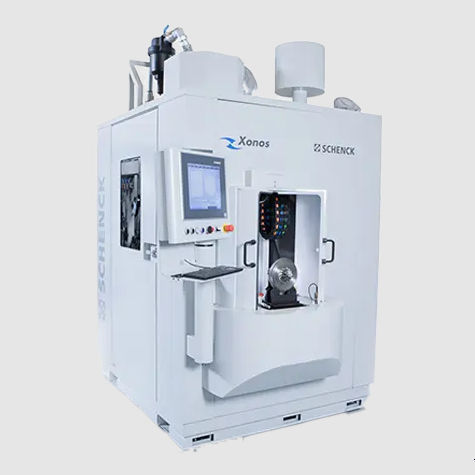

Horizontal balancing machine Xonos

dynamicmanualfor turbochargers

Balancing machines for turbocharger core assemblies: With its compact design, integrated shaft magnetization and an oil lubrication system with parameter control, Xonos is a powerful and versatile balancing machine for turbocharger core assemblies. They are suitable for vibration and pulsation measurement, speed control and unbalance calculation in two planes and with DMC scanning, shaft magnetization for speed and angle measurement and two-plane balancing by milling in a single-station machine. Loading is manual or automatic. New standards in quality assurance Maximize the performance and service life of turbochargers. With our balancing machines, you can identify and correct unbalances before commissioning receiving the benefits of no vibrations, unpleasant noises and premature wear. Many areas of application from prototype development to series production We provide you with customized answers to a wide range of challenges, from manual, highly flexible machines for small quantities to semi- and fully automated solutions. Whether development and prototype construction or integration into fully automated production lines, you will find the balancing machine you need with us. Efficient balancing at low and high speeds The balancing machines from Schenck offer advantages for turbochargers and components. With low-speed balancing, the unbalance values are measured at low speeds in an air bearing, then brought up to the measured speed and braked again for simpler processes, more favorable tooling and clean machines. High-speed balancing minimizes the axial load on the rotor through pressure compensation without special tooling and achieves 90% of the operating figures.
