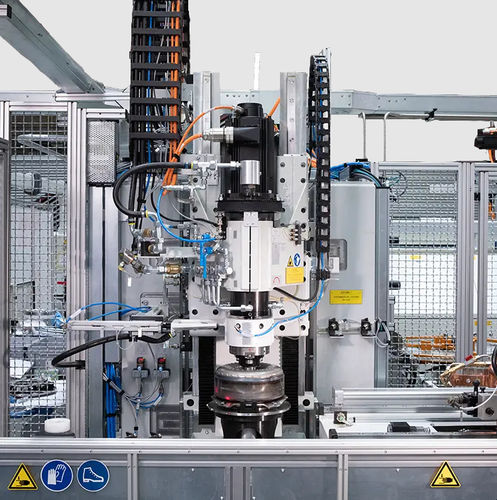

Vertical balancing machine UBLD

dynamictorque converterautomatic

Balancing machine for torque converters: UBLD is the production line-compatible balancing machine for torque converters with fully automatic correction The unbalance correction is carried out in accordance with DIN 1319, the cycle time is 60 - 80 seconds. Semi-automatic and fully automatic balancing solutions for demanding applications The balancing machine for turning and complete converters is a single-plane balancing machine with a vertical rotor axis that enables semi-automatic or fully automatic processes. It has a balancing unit, precision clamping fixtures, a weight cutting and molding unit and a welding unit for unbalance correction. The unbalance is determined in the measuring system developed by Schenck and the correction values are calculated in the associated CAB 950 software. This enables very precise and efficient balancing, as all components in the measuring and correction process are perfectly harmonized. Flexible loading and unloading of the balancing machine The balancing machine for rotary and complete converters enables manual or automatic loading and unloading, either via the integrated transport mechanism or an external feed. It is equipped with a freely programmable control system that allows easy operation and customization. The integrated machine diagnostics system displays all relevant data clearly on the screen. Multi-station versions are also available on request to increase productivity. Efficient unbalance correction solution for production lines The machine is designed for high-volume production and can be integrated into production lines. Unbalance correction is achieved by automatically welding weights onto the outer diameter.
