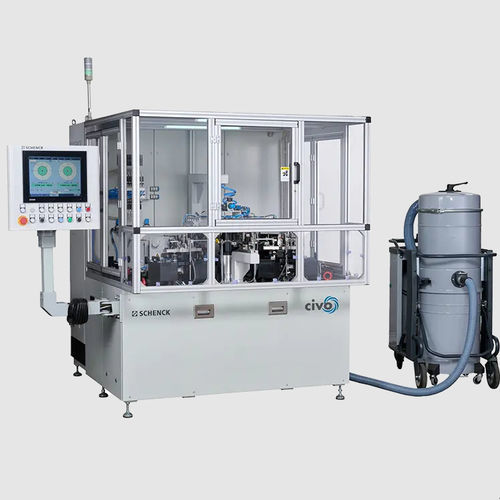

Horizontal balancing machine Civo

dynamicelectric armatureautomatic

Ideal for medium to large quantities of up to approx. 2 million electric armatures per year, the CIVO offers you maximum balancing performance in the smallest of spaces. It is designed for the fully automatic balancing of small electric armatures up to 500 g (optionally up to 3 kg). The machine is a 5-station machine designed for the automatic balancing of electric armatures by milling or optionally drilling. Balancing takes place in one or two planes. The machine essentially consists of the transfer station to the on-site feeder system, measuring station, balancing station level 1, balancing station level 2, measuring station for audit check, internal pick-and-place lift and turn transport, as well as the electrical control cabinet and protective device. More quality through balancing The ever-increasing speeds of electric motors also increase the demands on the balancing quality of electric armatures. By balancing the rotor, you can efficiently reduce the vibration and thus the noise emission of electric motors for better quality and a longer service life of your products Schenck balancing machines for electric armatures deliver high performance in a compact design Short cycle times, good accessibility to all components with a compact design and user-friendly handling, make Schenck balancing machines the perfect high performers for your production. A flexible interlinking interface ensures the connection to your workpiece feeder. Communication interfaces ensure smooth data transfer with line control and MES systems.
