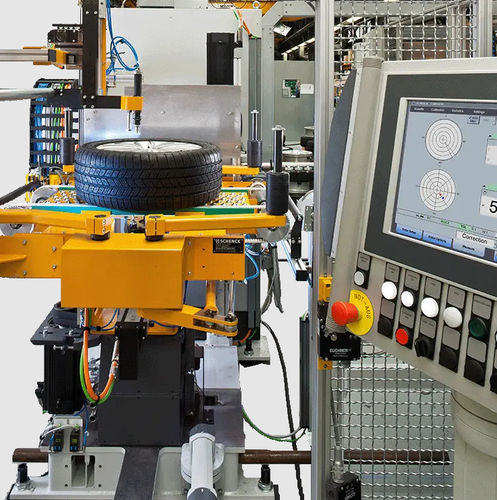

Wheel balancing machine Ventuo Bal

horizontalstaticdynamic

Our fully automatic wheel balancing machines from the Ventuo Bal series measure the static and dynamic unbalance of complete car wheels and rims in a working range from 14'' to 25''. They measure the unbalance and calculate the necessary balancing procedures for the optimal balancing process, thereby, achieving the smallest residual unbalances of the complete wheel, and, when in “control measurement” mode, determine the residual unbalances after balancing has been completed. Your advantages are the high stability of the measuring system without interference with cycle times of less than 10 s. Our Ventuo Bal is the basis for unbalance testing in the rim manufacturing process and considers advance values for different valve types when determining residual unbalance. Maximum complete wheel weight: up to 50 kg Total wheel outer diameter: 550 to 900 mm Rim diameter: 14'' to 25'' Rim width: 3,5'' to 14'' Wheel assembly lines for every requirement Schenck's wheel assembly lines ensure highly efficient assembly and testing of complete wheels thanks to their high precision and innovative technology. From semi-automatic and fully automatic to robot-assisted solutions, we implement your production specifications in various stages of expansion and in the ideal way for you. Customized efficiency through powerful individual systems Our modular wheel and tire machines can be integrated into a wheel assembly line and also be used as a standalone system to expand existing production facilities. Starting with the core process of assembly, pressure filling, and balancing for small to medium quantities, through to high-end solutions for maximum flexibility with various testing processes
