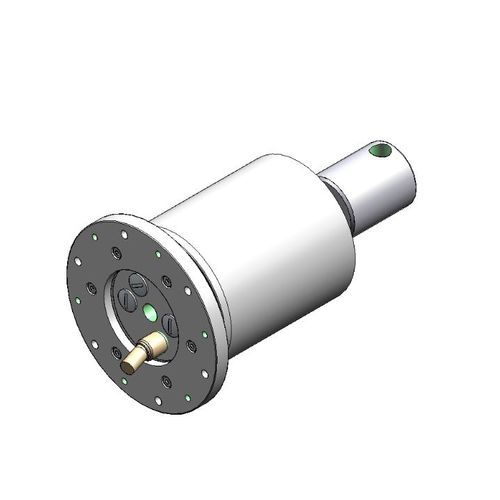

Ethernet slip ring 7KM000022

for roboticsfor rotary tablesfor packaging

One of the most frequently ordered configurations is our MIA slip ring with Ethernet module, flange and 1-channel media rotary joint. The slip rings are manufactured in our production in Fürstenfeldbruck (Made in Germany). The slip ring can be individually adjusted using the MIA configurator. This is a best-selling configuration suggestion. Among the downloads you will find the MIA product brochure, which explains the construction kit in detail. Ethernet 100Base-TX (CAT.5e) + 4 signal tracks (30 V/3 A) 1-channel 1/4" media rotary joint for water and air (up to 10 bar) Dimensions: 90mm diameter; 190.5mm length; 3m cable each (stator & rotor) Flange diameter: 120 mm Gold on gold contact technology Lifetime: up to 50 million revolutions Average speed: 200 rpm (max. 400 rpm) Protection class: IP50 Housing: aluminum Operating temperature: -20°C to +70°C The slip ring can be used for any Ethernet-based protocol. The shielding enables a high level of transmission security in electromagnetic areas. The slip ring is delivered without a plug - the plug assembly is carried out individually by the customer. Typical fields of application: Production lines in large industrial factories (e.g. battery manufacturing lines - automotive, food industry) Manufacturing systems in various industrial areas (rotary tables, classic mechanical engineering e.g. tools)
