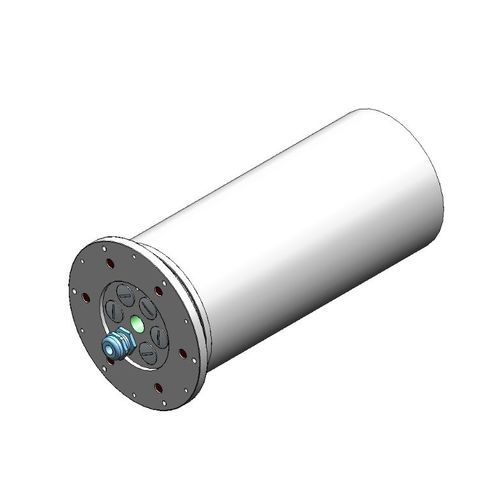

CC-Link slip ring 7KM000017

for cranesfor rotary tablesfor packaging

One of the most frequently ordered configurations is our MIA slip ring with two power modules (630 V - 25 A), CC-Link module and flange. The slip rings are manufactured in our production in Fürstenfeldbruck (Made in Germany). The slip ring can be individually adjusted using the MIA configurator. This is a best-selling configuration suggestion. Among the downloads you will find the MIA product brochure, which explains the construction kit in detail. 2x A-module: each power module has 3 tracks plus PE (630 V - 25 A each) CC Link (10 Mbit). 2x CC link. Dimensions: 140mm diameter; 330mm length; 3m cable each (stator & rotor) Flange diameter: 170 mm Gold on gold contact technology Lifetime: up to 50 million revolutions Average speed: 150 rpm (max. 300 rpm) Protection class: IP50 Housing: aluminum Operating temperature: -20°C to +70°C Each A-module has three power tracks and one PE. The CC-Link module has 2x CC-Link (shielded) and 3x reserve tracks. The slip ring is delivered without a plug - the plug assembly is carried out individually by the customer. Typical fields of application: Production lines in large industrial factories (e.g. battery production lines - automotive, food industry) Manufacturing systems in various industrial areas (rotary tables, classic mechanical engineering) Drives Heaters
