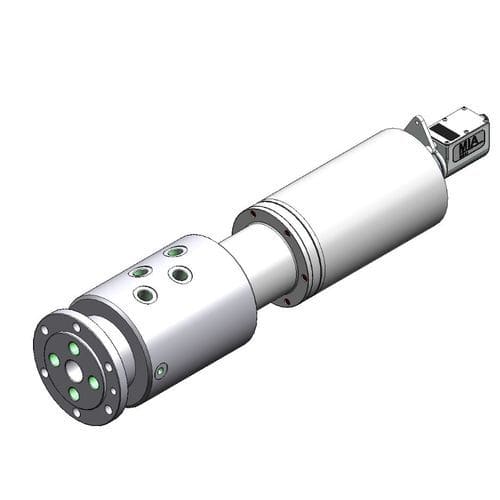

Ethernet slip ring 7KM000152

packaging machinefor robotsfor stage lighting

One of the most frequently ordered configurations is our MIA slip ring with power module B (400 V - 18 A), 3x Ethernet modules and a 4-channel media rotary joint (1/2"). The slip rings are manufactured in our production in Fürstenfeldbruck (Made in Germany). The slip ring can be individually adjusted using the MIA configurator. This is a bestseller configuration suggestion. Among the downloads you will find the MIA product brochure, in which you will find the modular system explained in detail. B-module: Power via 4 tracks plus PE (400 V - 18 A each) 3x Ethernet 100Base-TX (CAT.5e) + 3x 4 signal tracks (30 V/3 A) Dimensions: 140mm diameter; 733mm length; 3m cable each (stator & rotor) Media rotary joint diameter: 160 mm Gold on gold contact technology Lifetime: up to 50 million revolutions Average speed: 150 rpm (max. 300 rpm) Protection class: IP50 Housing: aluminum Operating temperature: -20°C to +70°C The B-module has four power tracks and one PE. The P-modules can be used for any Ethernet-based protocol. The shielding enables a high level of transmission security in electromagnetic areas. The media rotary joint has 4-channels (1/2") with up to 10 bar. The slip ring is delivered without a plug - the plug assembly is carried out individually by the customer. Typical fields of application: Production lines in large industrial factories (e.g. battery manufacturing lines - automotive, food industry) Manufacturing systems in various industrial areas (rotary tables, classic mechanical engineering) Drives Heaters
