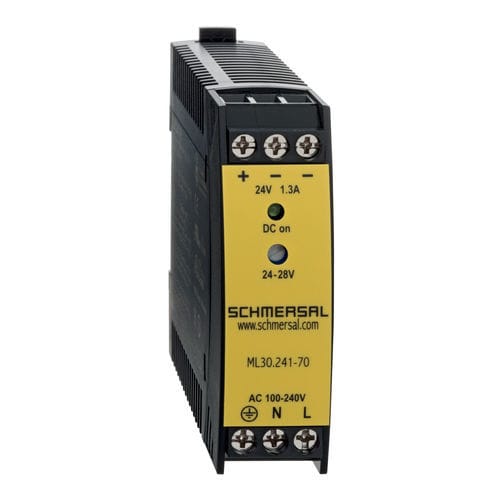

DIN rail power supply ML30.241-70

AC/DCsingle-outputsingle-phase

Product features

• 1-phase DIN rail power supply with wide-range AC input (100–240 VAC)
• Adjustable DC output 24–28 V (front potentiometer adjustable 22–28 V)
• Output power 30 W, max. output current 1.3 A (24 V) / 1.1 A (28 V)
• Efficiency up to 89.4% and integrated PFC coil
• Compact width 22.5 mm for high-density installations
• Quick DIN-rail mounting and screw terminal connections

Ordering data
Product type description: ML30.241-70
Article number (order number): 103015923
EAN (European Article Number): 4030661505275
eCl@ss number, version 12.0: 27-04-07-01
ETIM number, version 7.0: EC002540

General data

• Standards: EN 50178; EN IEC 60204-1; EN IEC 60947-1; EN IEC 60947-5-1; EN IEC 60947-5-3; EN IEC 60947-5-5; EN IEC 62061; IEC 60364-4-41; IEC 62103
• Climatic stress: IEC 60068-2-30
• Gross weight: 140 g

General data - Features

• Integral system diagnostics, status: Yes
• Number of LEDs: 1

Mechanical data

• Mounting: Snaps onto standard DIN rails to IEC 60715

Mechanical data - Connection technique

• Type of electrical connection: Screw terminals
• Cable section, minimum: 0.5 mm²
• Cable section, maximum: 6 mm²
• Tightening torque of clips: 1 Nm
• Allowed type of cable: flexible; solid single-wire

Mechanical data - Dimensions
Width: 22.5 mm
Height: 75 mm
Depth: 91 mm

Ambient conditions

• IP degree of protection of the enclosure: IP20
• Ambient temperature (operating): -10 ... +70 °C
• Storage and transport temperature: -40 ... +85 °C
• Resistance to vibrations: 2 g
• Resistance to shock: 30 g 6 ms, 20 g 11 ms (IEC 60068-2-27)
• Degree of pollution: 2

Electrical data

• Frequency range: 50 Hz / 60 Hz
• Operating voltage: 100 ... 240 VAC (-15 % / +10 %)
• Type of voltage range: AC
• Rated operating voltage: 100 ... 240 VAC
• Operating current: 0.3 mA / 0.54 mA
• Rated AC voltage for controls, minimum (50/60 Hz): 100 VAC
• Rated control voltage at AC, maximum: 240 VAC
• Rated control voltage at DC, minimum: 110 VDC; maximum: 300 VDC
• Output voltage DC: 24 ... 28 VDC (front potentiometer adjustable 22 to 28 V)
• Maximum output current: 1.1 A / 28 VDC; 1.3 A / 24 VDC
• Output power, maximum: 30 W
• Efficiency: up to 89.4%
• Integrated PFC coil

Short description

• Compact 1-phase DIN rail power supply with wide-range AC input and adjustable DC output
• Designed for quick DIN-rail mounting and compact installations (22.5 mm width)

Technical specifications

• Model: ML30.241-70
• Item number: 103015923
• EAN: 4030661505275
• Input voltage: 100-240 VAC (-15% / +10%)
• Frequency: 50 / 60 Hz
• Output voltage: 24-28 VDC (adjustable 22-28 V)
• Output power: 30 W
• Maximum output current: 1.3 A (24 VDC) / 1.1 A (28 VDC)
• Efficiency: up to 89.4%
• Dimensions (W × H × D): 22.5 mm × 75 mm × 91 mm
• Weight (gross): 140 g
• Protection class: IP20
• Operating temperature: -10 ... +70 °C
• Storage temperature: -40 ... +85 °C
• Mounting: DIN rail to IEC 60715
• Connection: Screw terminals, 0.5 ... 6 mm²
• Degree of pollution: 2
