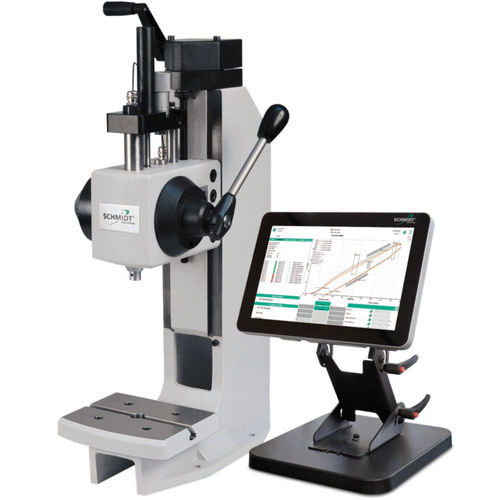

Manual press 305

assemblyC-frameram

Process reliability, force/stroke monitoring of the joining process and EN ISO-compatible documentation of the results are becoming the major factors for small and medium production within the manual workplace. The SCHMIDT® ManualPress 300 Series system with SCHMIDT® PressControl 700 includes: Integrated reliable measuring technology High resolution of the obtained process data Graphical and numerical output of the processing results Quality monitoring using freely selectable tolerances Process reliability – not just a slogan. The system software allows easy setup of quality control criterea for 100 % in-process monitoring. Features Linear force progression for No. 305 and No. 307 * Precise adjustment of the press depth via micrometer fine adjustment * Guides require little maintenance, have little wear and are locked against rotation. This results in precise working and a long service life * Optimum guidance and clamping due to dovetail guide on the press head * Quick set-up * Exact alignment of ram bore to the table within 0.05 mm * Height adjustment using a crank * Precision bores in ram and column base plate
