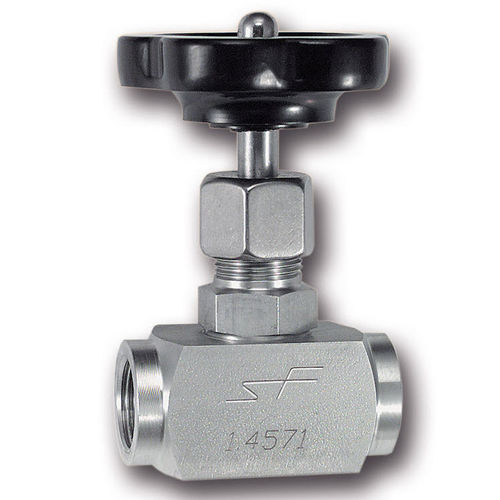

Needle valve V-NVG-ASP
manualpressure-reducingthreaded

needle valve
needle valve
needle valve
Add to favorites
Compare this product


Characteristics

Type
needle
Operation
manual
Function
pressure-reducing
Body
threaded, stainless steel, PTFE
Number of channels
2-way
DN

Min.: 5 mm
(0.197 in)

Max.: 22 mm
(0.866 in)

Pressure

Min.: 200 bar
(2,900.8 psi)

Max.: 400 bar
(5,801.5 psi)

Temperature

Min.: -60 °C
(-76 °F)

Max.: 200 °C
(392 °F)

Description

Forged. Housing Material: 1.4571, Spindle Material: 1.4571, Spindle Seal: PTFE, Hand wheel: pressed. Also available with NPT thread - on request. Temperature range: -60 ° C to 200 ° C. At elevated temperatures, please consult the pressure reduction table on page 8.
