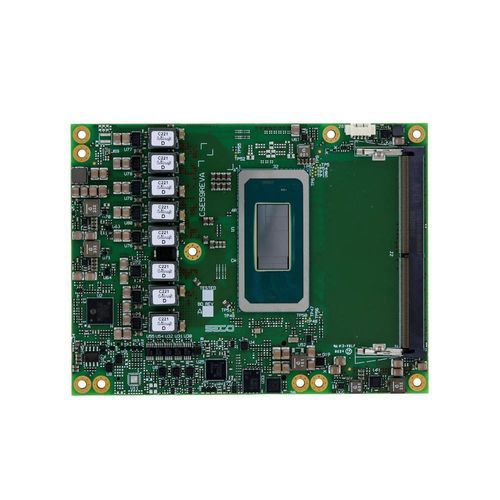

COM Express computer-on-module PN-SOM-COMe-BT6-ARL

Intel® Core™ UltraHDMIDisplayPort

Overview
COM Express Revision 3.1 Type 6 Basic module (E59) compatible with Intel® Core™ Ultra Processors Series 2 (codename Arrow Lake, H- and U-SKUs). Designed for embedded and edge systems requiring configurable CPU, advanced graphics and broad I/O options.

Highlights

• CPU: Support for Intel® Core™ Ultra Series 2 (H- and U-SKUs; multiple SKU options including vPRO variants)
• Graphics: Integrated Intel® Xe LPG+ graphics (up to 8 Xe cores / 128 EUs), up to 4 independent displays
• Memory: 2x DDR5 SO-DIMM slots, up to DDR5-6400 IBECC, up to 64 GB
• Connectivity: 1x NBase-T (2.5GbE), USB4/USB 10Gbps/Hi-Speed USB, up to 20 PCIe Gen4 lanes (configurable)

Security & Software

• Secure Boot support for platform integrity
• OTA update mechanism for remote firmware/software distribution
• Device monitoring and management integration
• Yocto-based secure OS integration and support for containerization (Docker)
• Security compliance support (example: EN18031-1) and optional TPM 2.0

Resources & Packaging
Datasheet, developer documentation and ordering information available on the product page. Module delivered with manufacturer documentation; factory options and alternatives listed in datasheet.

Technical specifications

• Form factor: COM Express Rev. 3.1 Type 6 Basic Module (E59)
• Processor family: Intel® Core™ Ultra (Series 2), H- and U-SKUs (multiple configurations)
• CPU examples: Core Ultra 9 285H, Core Ultra 7 265H/265U, Core Ultra 5 235H/235U (various P/E core counts, caches and power levels)
• Memory: 2x DDR5 SO-DIMM, up to DDR5-6400 IBECC, up to 64 GB
• Graphics: Intel® Xe LPG+ (up to 8 Xe cores / 128 EU), 3x DDIs (DP/HDMI), eDP or LVDS option, up to 4 displays
• Video: HDMI® up to 8K60 (HDMI2.1), DP2.1 up to 8K60 / 5K120Hz, eDP1.4b up to 4K120Hz HDR
• Storage: Optional onboard NVMe (PCIe x4) up to 512 GB; up to 2x SATA Gen3.2 (factory alternative)
• Networking: 1x NBase-T via Intel® I226 (2.5GbE)
• USB: Up to 2x USB4 Gen2, 4x USB 10Gbps, 8x Hi-Speed USB
• PCIe: PEG Gen4 x8 (H-series) and additional configurable Gen4 lanes (up to 20 lanes total)
• Other I/O: MIPI CSI (option), SPI, I2C, SM Bus, UARTs, GPIO, HD audio, SoundWire, watchdog, fan and thermal management
• Power: Main input +8 VDC to +20 VDC; auxiliary rails +5VSBY, +3VRTC
• OS support: Windows 10 IoT Enterprise (2019/2021 LTSC), Yocto Kirkstone
• Operating temperature: 0°C to +60°C (commercial)
• Dimensions: 125 x 95 mm
• Part number: PN-SOM-COMe-BT6-ARL
